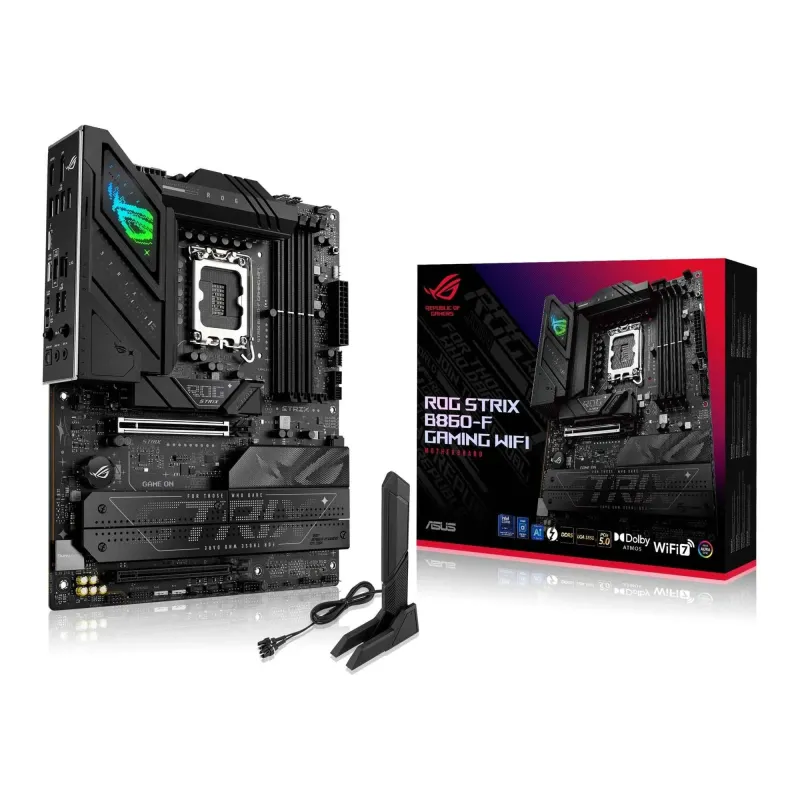

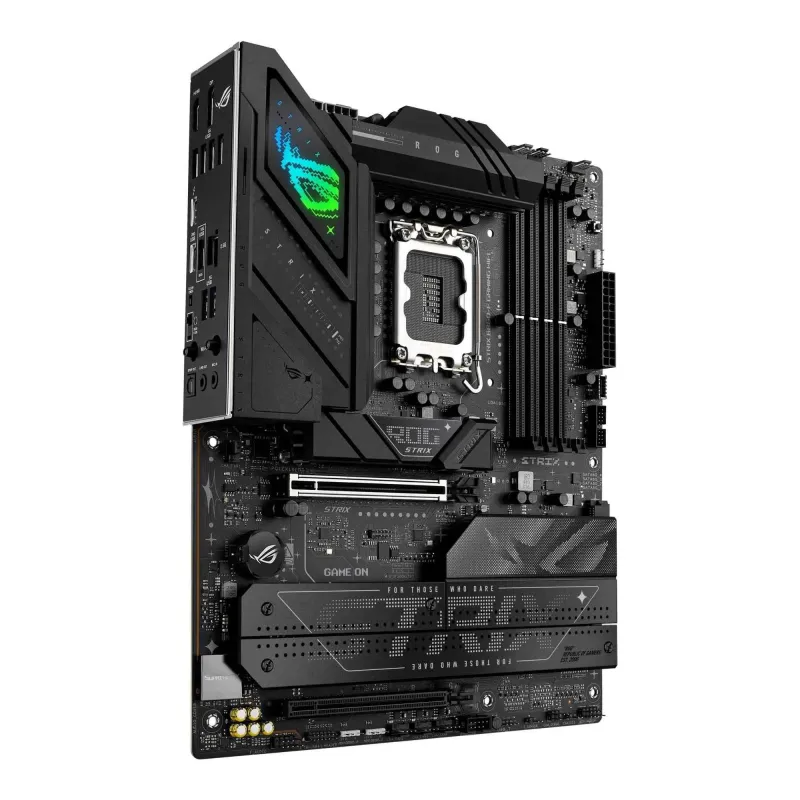

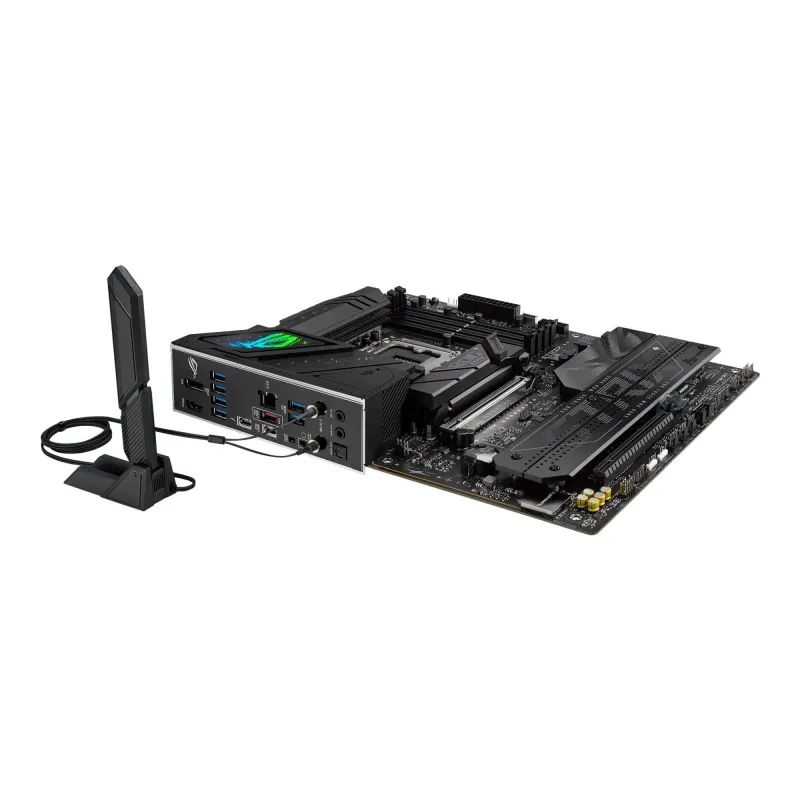

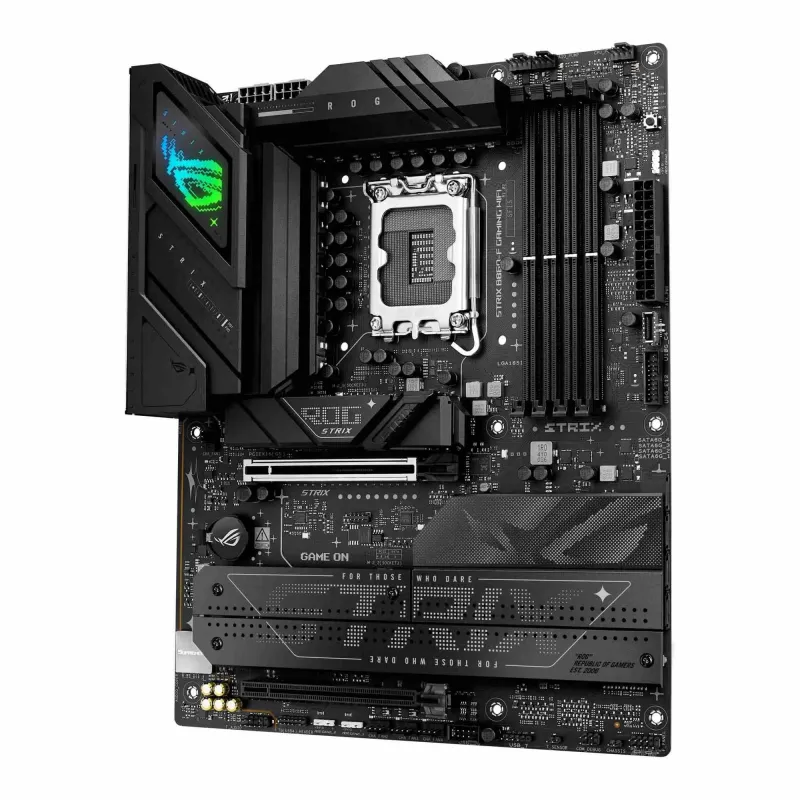

Płyta Asus ROG STRIX B860-F GAMING WIFI

Opis

Gniazdo procesora

Socket 1851

Format płyty

ATX

Bios

256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x Quick start guide
1 x ROG Strix stickers
1 x ROG key chain
2 x SATA 6Gb/s cables

Wymiary [S x W] (mm)

305 x 244

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 2,5 Gigabit LAN Intel®

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

Intel® B860

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Standard pamięci

DDR5-9066 (OC)

Uwagi do karty graficznej

4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps,
Graphics specifications may vary between CPU types. Please refer to
In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4a
VGA resolution support depends on processors' or graphic cards' resolution
While installing the operating system, please ensure that your monitor is
connected to the HDMI port on the back I/O panel or to a discrete graphics
for resolution support please check DisplayPort 2.1 specs.

Uwagi do procesora

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile III (AEMP III)
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA

- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Intel® B860 Chipset:
Intel® Core™ Ultra Processors(series 2):
M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with
SSD device, PCIEX16(G4) will be disabled

Gniazda karty graficznej

DisplayPort
HDMI
Thunderbolt™ 4

Zintegrowana karta dźwiękowa

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

7.1 Surround Sound audio output
A chassis with an HD audio module in the front panel is required to support
High quality 120 dB SNR stereo playback output and 110 dB SNR recording in
Impedance sense for front and rear headphone outputs
Premium audio capacitors- Audio cover
Savitech SV3H712 AMP
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Supports up to 32-Bit/384 kHz playback on front panel
SupremeFX Shielding Technology
The LINE OUT port on the rear panel does not support spatial audio

Złącza PCI Express x16

2

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
Intel Core Ultra Processors (series 2)
Intel® B860 Chipset:
To ensure compatibility of the device installed, please refer to

Uwagi do karty sieciowej

ASUS LANGuard

Maksymalna ilość portów USB 2.0

3

Maksymalna ilość portów USB 3.x

11

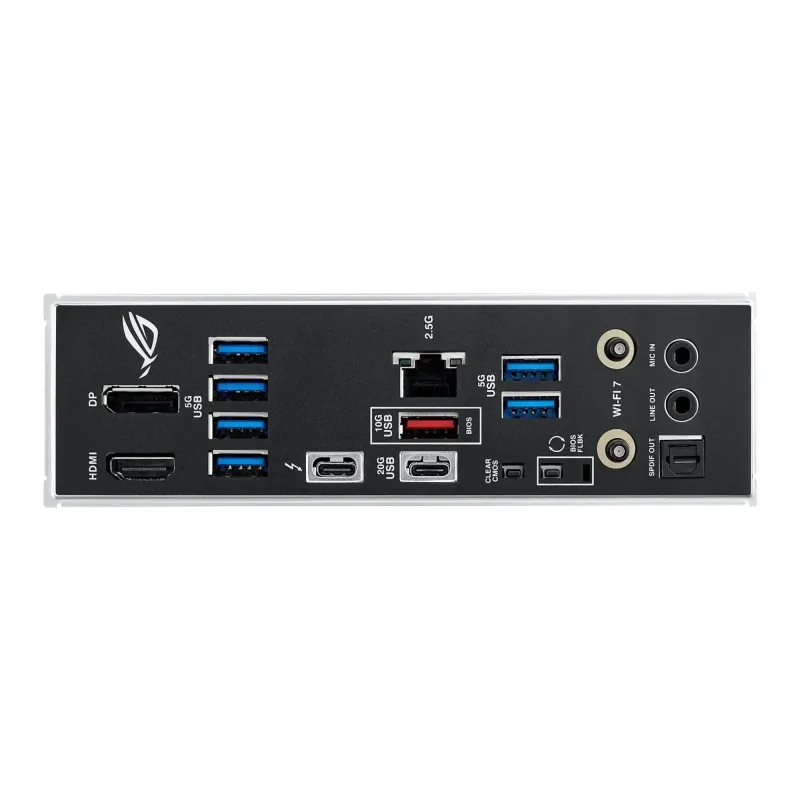

Porty USB na panelu tylnym

6x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C + 1x Thunderbot 4

Gniazda USB na płycie głównej

2x USB 2.0 (3 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin System Panel header
Chassis intrusion header
Clear CMOS button(s)
Start button
Thermal Sensor header
Wi-Fi module with an antenna connector

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

1

Uwagi do WiFi / BT

2x2 Wi-Fi 7 (802.11be)
For Windows 10, please note that no driver is available
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
The Bluetooth version may vary
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countr.
Wi-Fi features may vary depending on the operating system
functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E

Specyficzne kody

EAN13

4711387806951
