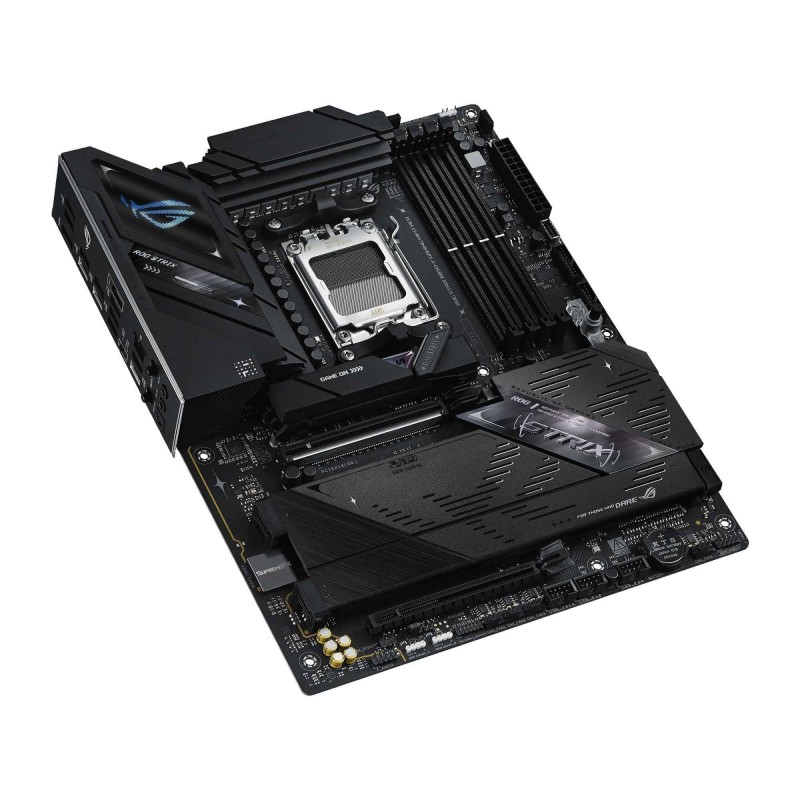

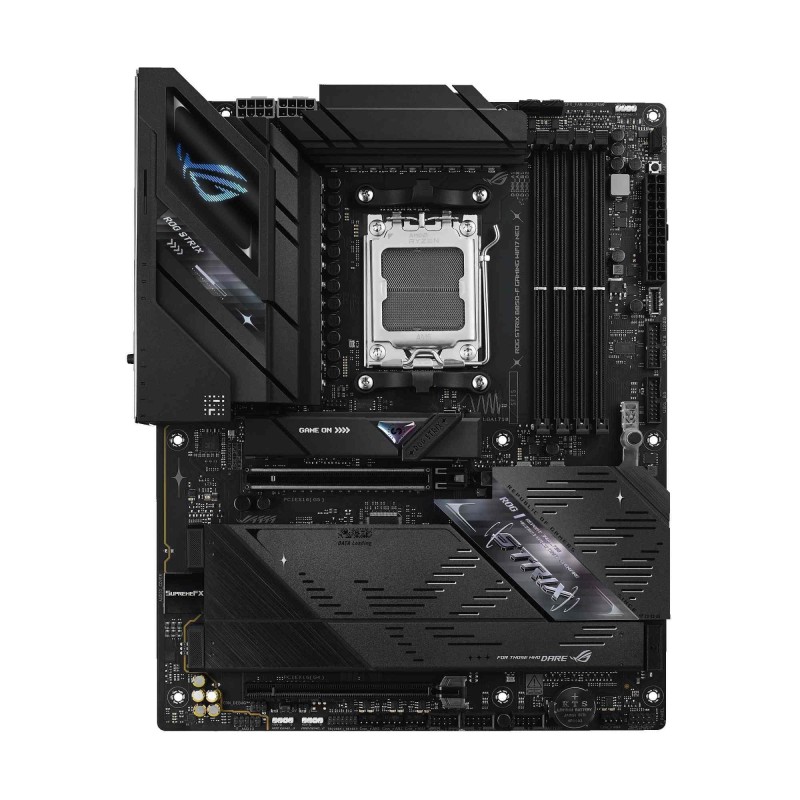

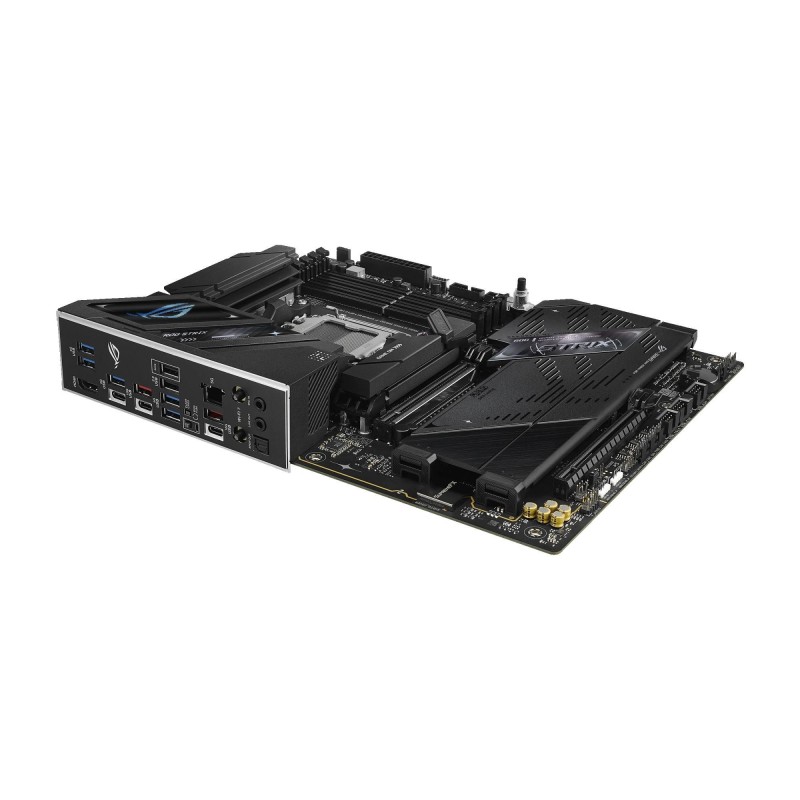

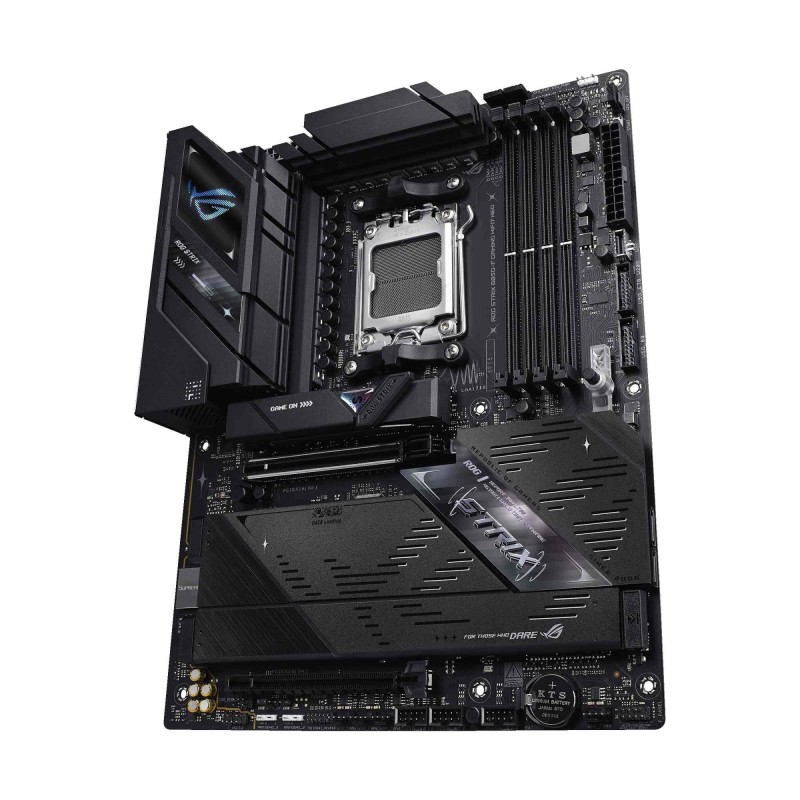

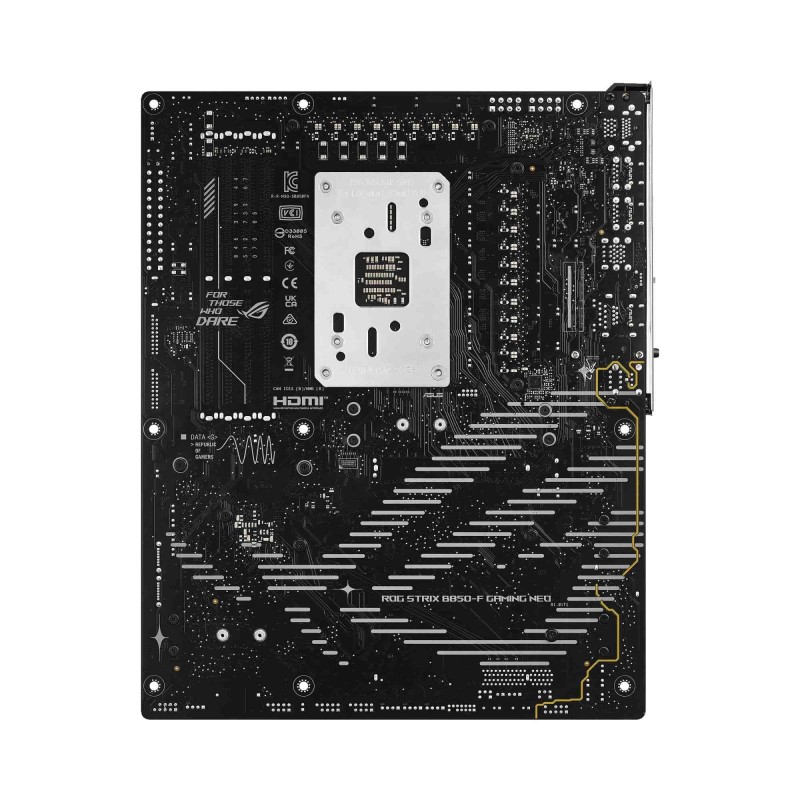

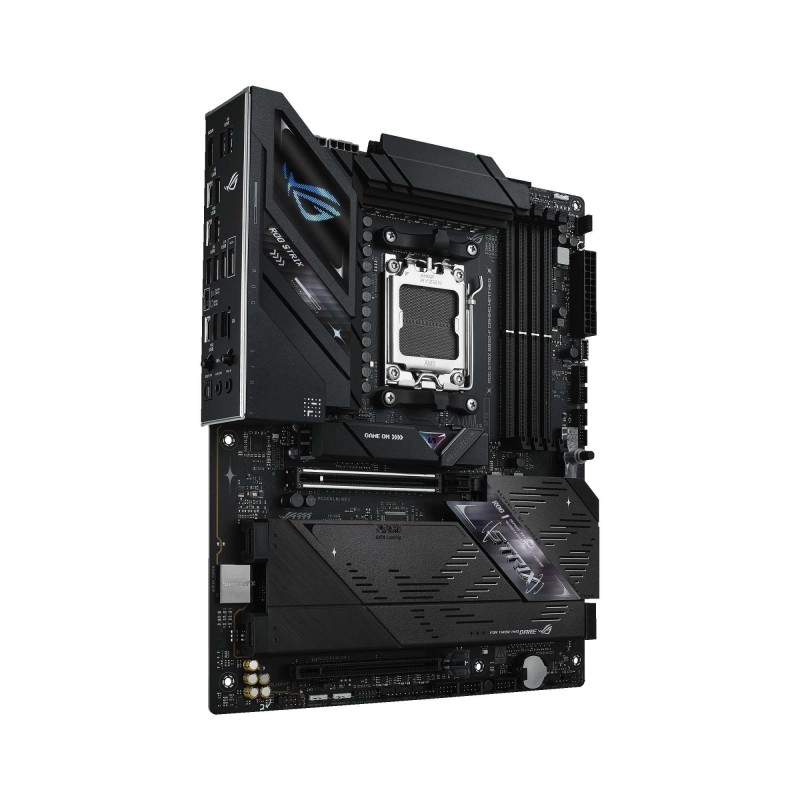

Płyta Asus ROG STRIX B850-F GAMING WIFI7 NEO /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

64 MB (512Mb) Flash ROM, UEFI AMI BIOS

Zawiera baterię / akumulator

Tak

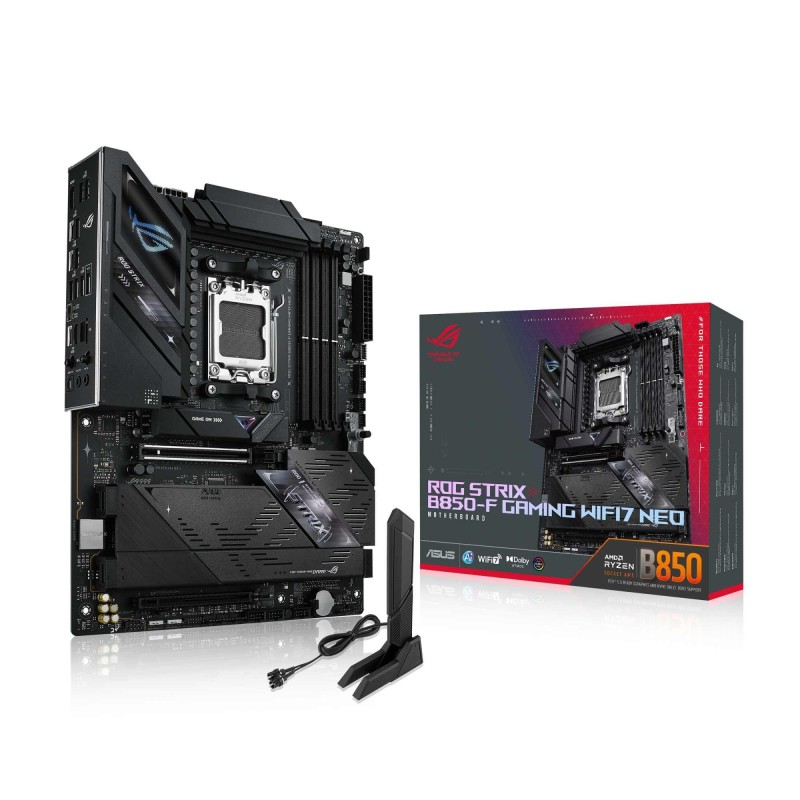

Wyposażenie dodatkowe

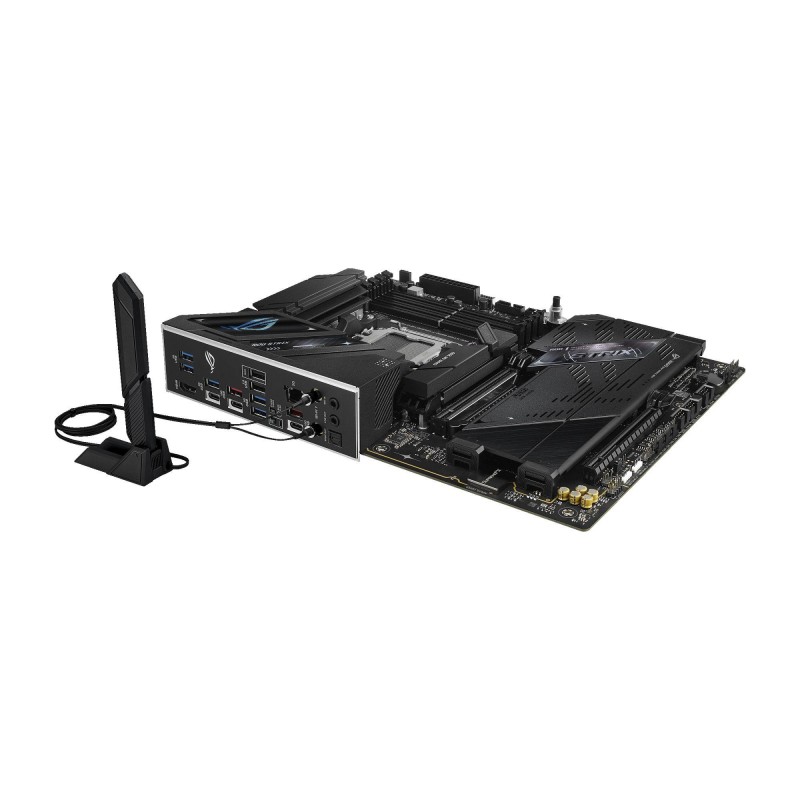

1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x M.2 backplate rubber package
1 x Quick start guide
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x ROG key chain
2 x SATA 6Gb/s cables
3 x M.2 rubber packages

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 5 Gigabit LAN Realtek®

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD B850

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-9000+ (OC)

Uwagi do karty graficznej

Available only on processors featuring integrated graphics. Graphics
Supports 4K@60Hz as specified in HDMI 2.1
specifications
specifications may vary between CPU types. Please refer to AMD CPU

Uwagi do procesora

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile (AEMP)
ECC and Non-ECC Un-buffered DIMM
Supports AMD EXTended Profiles for Overclocking (EXPO™)

Zintegrowany kontroler SATA

Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA

- M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)
- M.2_4 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
- Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
2 x SATA 6Gb/s ports
AMD B850 Chipset:
AMD RAIDXpert2 Technology:
AMD Ryzen™ 8500 & 8300 Series Desktop Processors:
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
PCIEX16(G4) slot is operating, the M.2_3 slot will be disabled
The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When the

Gniazda karty graficznej

HDMI

Zintegrowana karta dźwiękowa

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

- Audio cover
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording
- Impedance sense for front and rear headphone outputs
- Premium audio capacitors
- Rear optical S/PDIF out port
- Savitech SV3H712 AMP
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- Supports up to 32-Bit/384 kHz playback on front panel
- SupremeFX Shielding Technology
Audio Features:
input

Złącza PCI Express x16

2

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 slot (supports x4 mode)**
- 1 x PCIe 4.0 x16 slots (supports x4 mode)
- 1 x PCIe 4.0 x16 slots (supports x8 mode)
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD B850 Chipset:
AMD Ryzen™ 8500 & 8300 Series Desktop Processors:
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
PCIEX16(G4) (supporting x4 mode) from AMD B850 Chipset shares bandwidth
Specifications vary by CPU types
with M.2_3

Uwagi do karty sieciowej

ASUS LANGuard

Maksymalna ilość portów USB 2.0

10

Maksymalna ilość portów USB 3.x

15

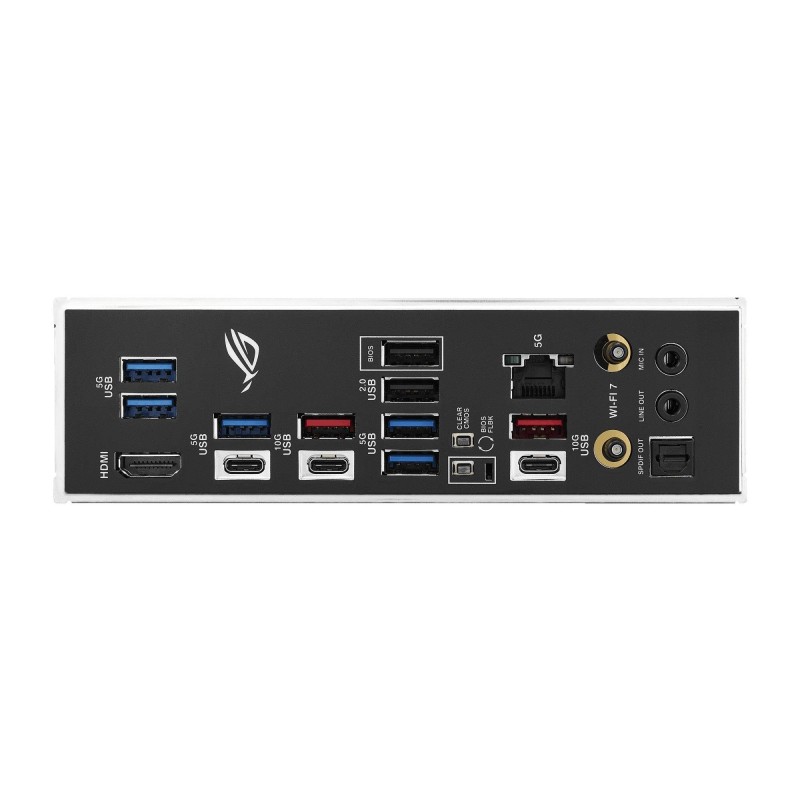

Porty USB na panelu tylnym

4x USB 2.0 + 5x USB 3.0 + 1x USB 3.0 Type-C + 2x USB 3.1 + 2x USB 3.1 Type-C

Gniazda USB na płycie głównej

3x USB 2.0 (6 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x AURA Addressable Gen 2 headers
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin Front Panel System header
CPU Over Voltage jumper
Front Panel Audio header (F_AUDIO)
Start button
Thermal Sensor header
Thunderbolt™ (USB4®) header

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

21H2/22H2/23H2 only supports Wi-Fi 6E
For Windows 10, please note that no driver is available,
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth
The Bluetooth® version may vary, please refer to the Wi-Fi module
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between
Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11
Wi-Fi features may vary depending on the operating system. For Windows 11,
countries
manufacturer’s website for the latest specifications
please refer to the Wi-Fi chipset vendor’s website for details.

Specyficzne kody

EAN13

4711636434904
