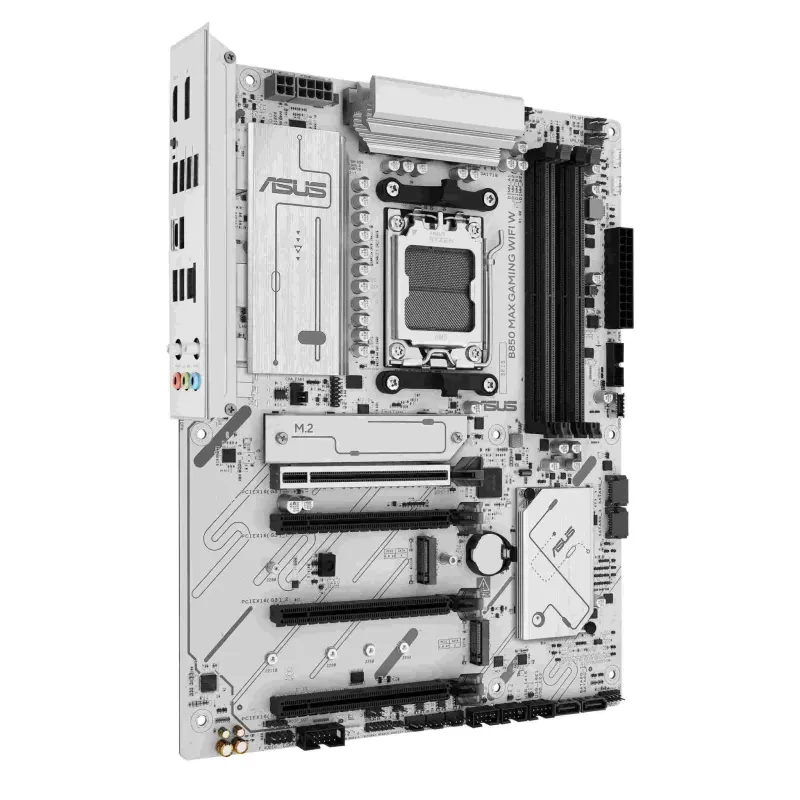

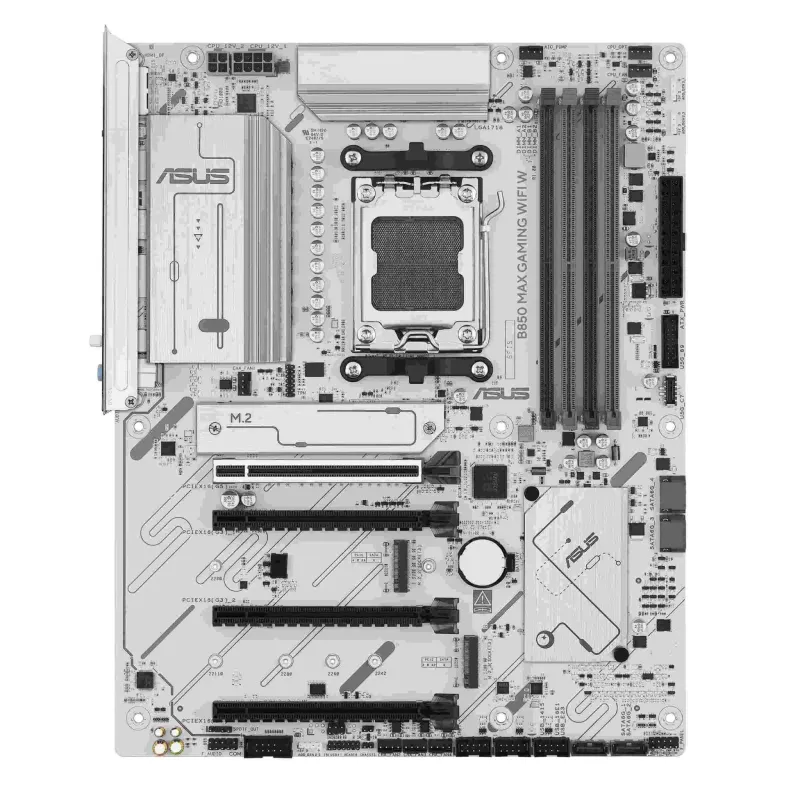

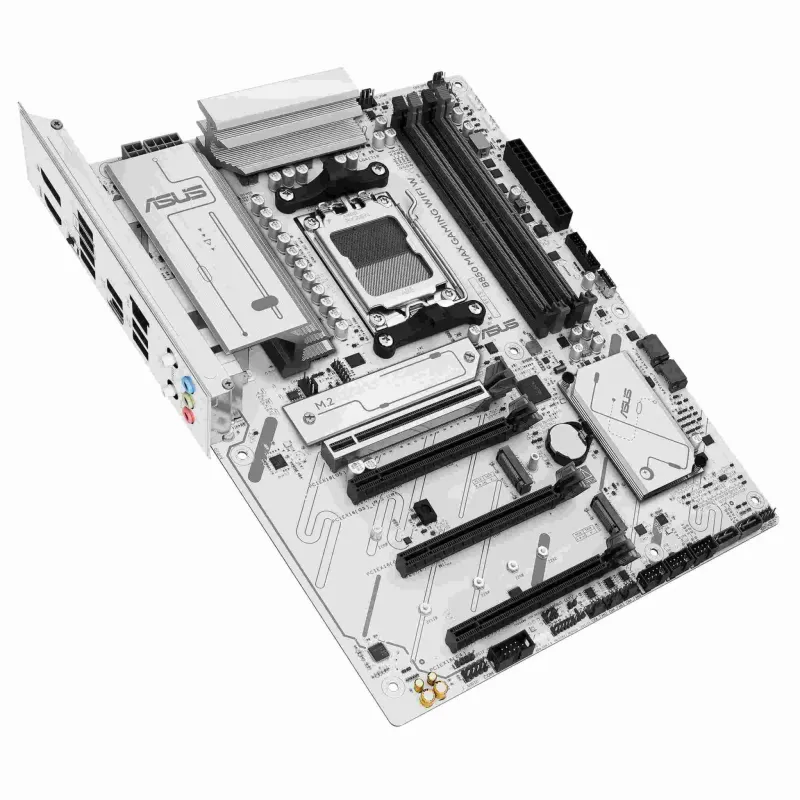

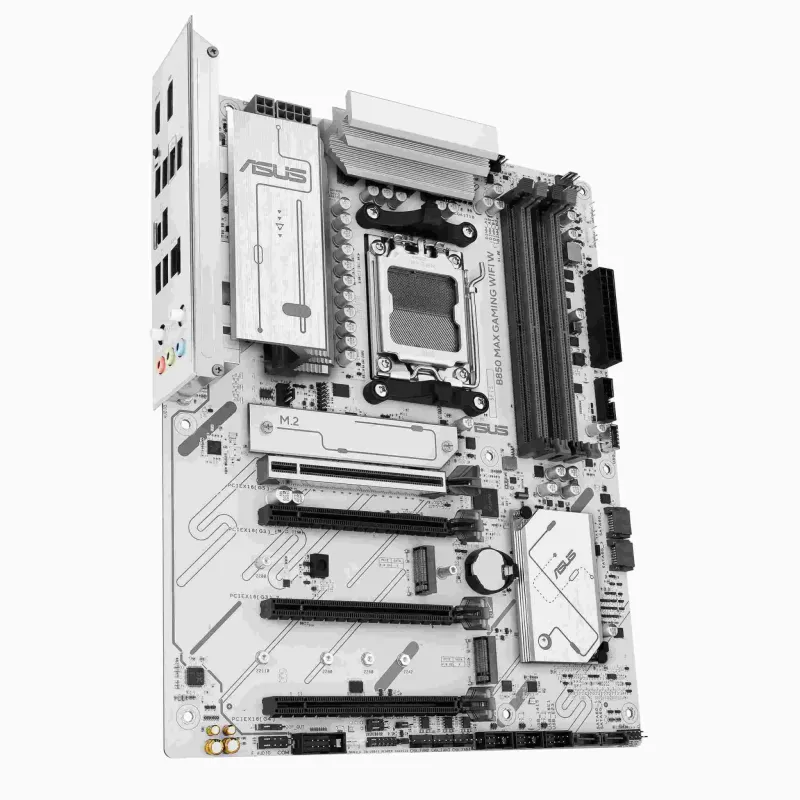

Płyta Asus B850 MAX GAMING WIFI W /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

Zawiera baterię / akumulator

Tak

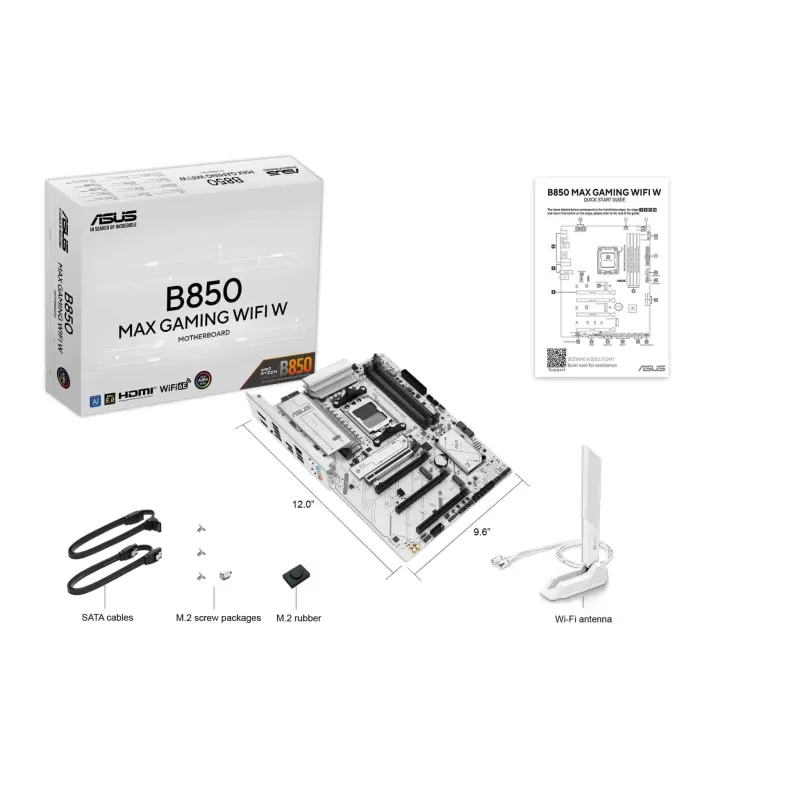

Wyposażenie dodatkowe

1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Quick start guide
1 x TUF Gaming sticker
2 x SATA 6Gb/s cables
3 x Screw packages for M.2 SSD

Wymiary [S x W] (mm)

305 x 244

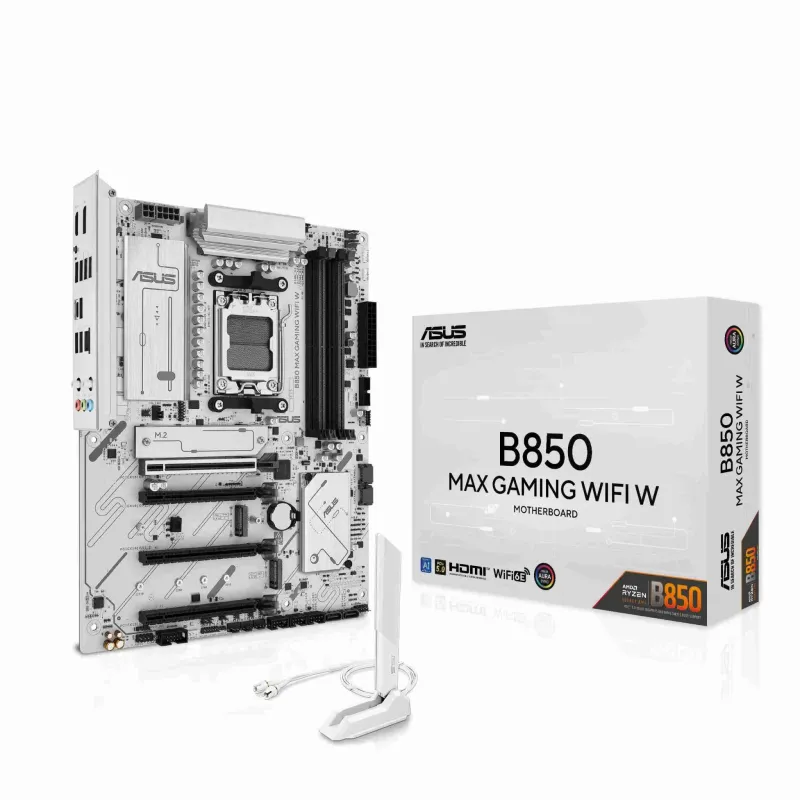

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.3

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 2,5 Gigabit LAN Realtek®

Port Wi-Fi

IEEE 802.11ax

Chipset płyty głównej

AMD B850

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-8000+ (OC)

Uwagi do karty graficznej

AMD CPU specifications
Graphics specifications may vary between CPU types. Please refer to
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 8K@30Hz as specified in DisplayPort 1.4

Uwagi do procesora

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile (AEMP)
Adjustments will be made based on the specifications of mass-produced
ECC and Non-ECC Un-buffered DIMM
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Supported memory types, data rate (speed), and number of DRAM modules vary
Supports AMD EXTended Profiles for Overclocking (EXPO™)
depending on the CPU and memory configuration, for more information please
memory products available on the market.
refer to CPU/Memory Support list under the Support tab of product

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SATA

- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
- Ryzen™ 7000 Series Processors: RAID 0/1/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
4 x SATA 6Gb/s ports
AMD B850 Chipset:
AMD RAIDXpert2 Technology:
AMD Ryzen™ 8000 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
Specifications vary by CPU types

Gniazda karty graficznej

DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo S/PDIF Out
Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

- Audio Shielding
- Dedicated audio PCB layers
- Premium audio capacitors
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
A chassis with an HD audio module in the front panel is required to
Audio Features:
support 7.1 Surround Sound audio output.

Złącza PCI Express x16

4

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- 1 x PCIe 4.0 x16 slot (support x4 mode)
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- 2 x PCIe 3.0 x16 slots (support x1 mode)
AMD B850 Chipset:
AMD Ryzen™ 8000 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
Please check the PCIe bifurcation table on the support site
Specifications vary by CPU types
The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be
To ensure compatibility of the device installed, please refer to
disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs

Uwagi do karty sieciowej

TUF LANGuard

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

9

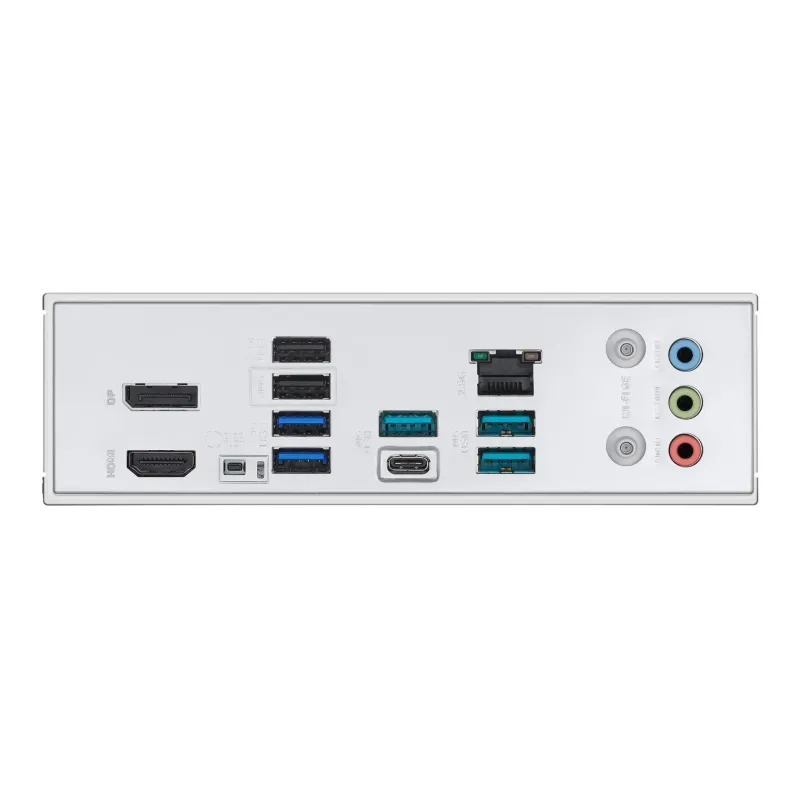

Porty USB na panelu tylnym

2x USB 2.0 + 2x USB 3.0 + 3x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej

3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin System Panel header
BIOS FlashBack button
Chassis intrusion header
Clear CMOS header
Front Panel Audio header (F_AUDIO)
SPI TPM header (14-1pin)
Thunderbolt™ (USB4®) header

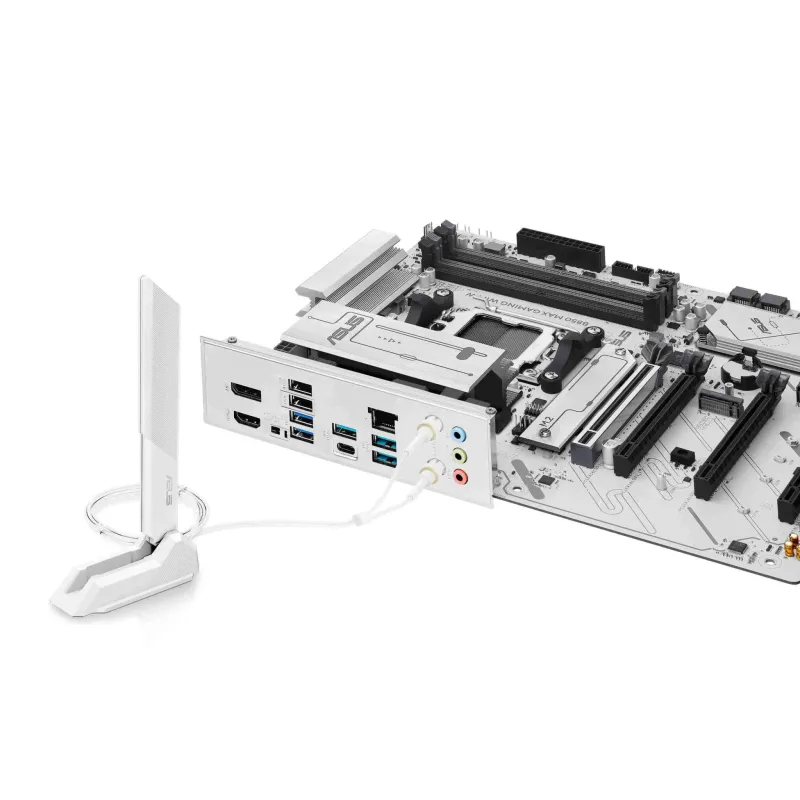

Wi-Fi module with an antenna connector

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

Supports 2.4/5/6GHz frequency band
The Bluetooth® version may vary, please refer to the Wi-Fi module
WiFi 6E 6GHz regulatory may vary between countries, supported only in
Windows 11 or later.
manufacturer's website for the latest specifications.

Specyficzne kody

EAN13

4711387981016
