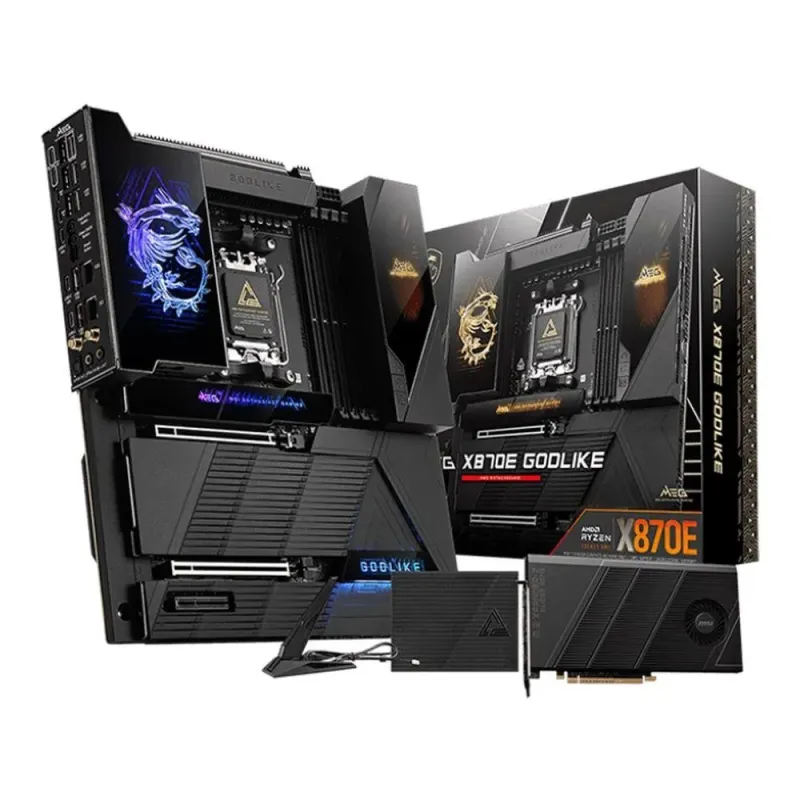

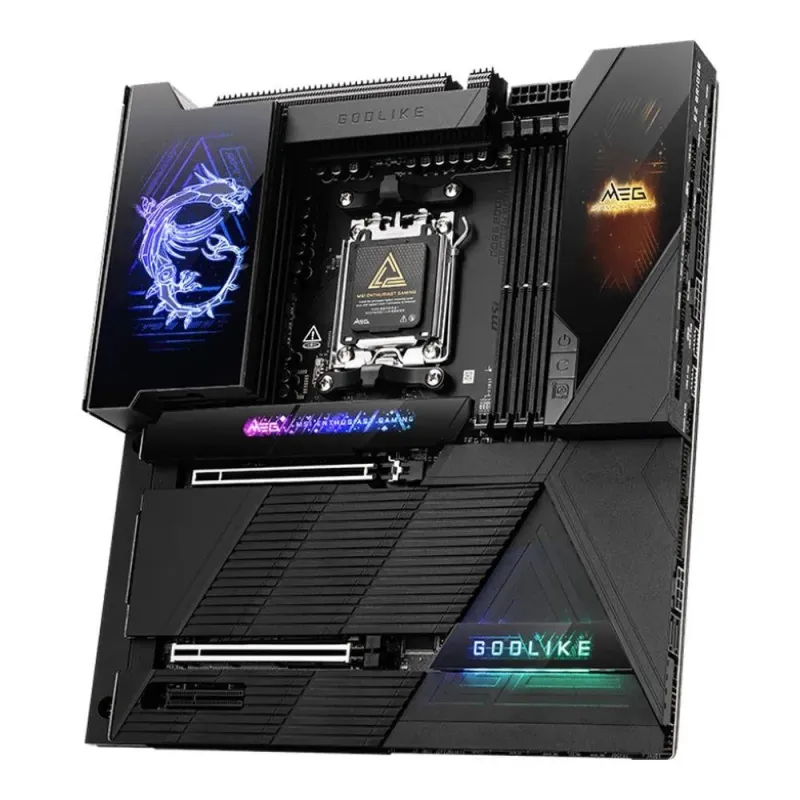

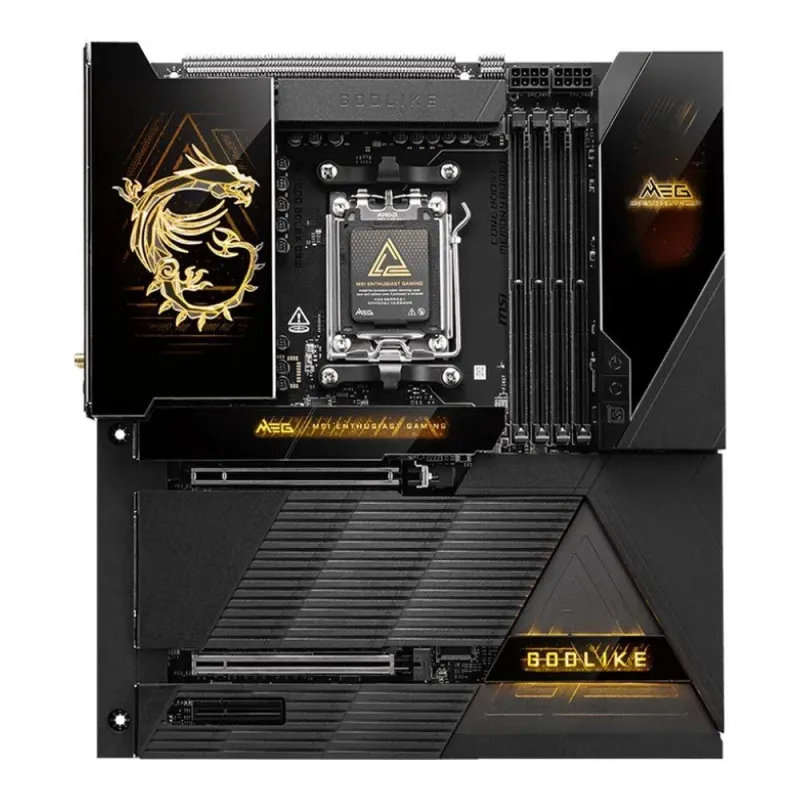

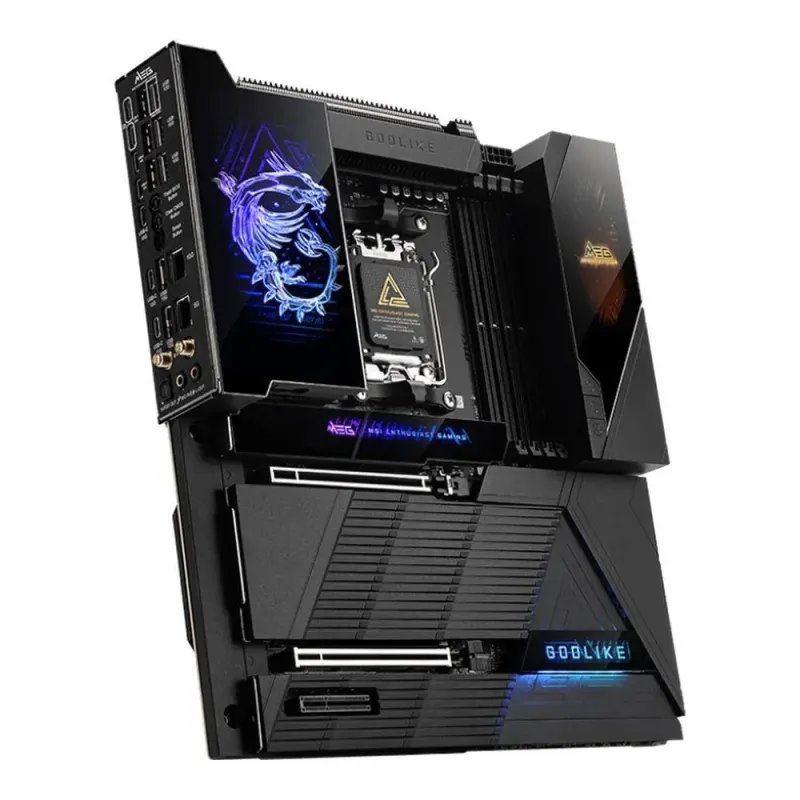

Płyta MSI MEG X870E GODLIKE /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

Extended-ATX

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

EZ M.2 Clip II Removal
EZ Wi-Fi antenna

Wymiary [S x W] (mm)

304,8 x 277

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 5 Gigabit LAN Realtek® 8126
1x 10 Gigabit LAN Marvell® AQC113CS

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-4800
DDR5-5000
DDR5-5200
DDR5-5400
DDR5-5600 (OC)
DDR5-5800 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7400 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-8000 (OC)
DDR5-8200 (OC)
DDR5-8266 (OC)
DDR5-8333 (OC)
DDR5-8400 (OC)

Uwagi do karty graficznej

Available only on processors featuring integrated graphics
Graphics specifications may vary depending on the CPU installed.
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum
resolution of 4K@60Hz

Uwagi do procesora

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
Supports AMD POR Speed and JEDEC Speed
Supports CUDIMM, Clock Driver bypass mode only
Supports Dual-Channel mode
Supports Memory Overclocking and AMD EXPO
Supports Non-ECC, Un-buffered Memory

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 7x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,
- M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4,
- M.2_2 Source (From CPU) supports up to PCIe 5.0 x4,
- M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4,
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2,
- M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4,
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- The M2_2 slot will be unavailable when using
M.2_1:
M.2_2:
M2_4 slot.
M2_4:
PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot.
Please refer to the manual for M.2 SSD heatsink restrictions
Ryzen™ 8500/ 8300 Series processors.
Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card
You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the
supports 2280 devices
supports 2280/2260 devices
supports 22110/2280 devices

Gniazda karty graficznej

2x USB4 Type-C

Zintegrowana karta dźwiękowa

Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

Supports up to 32-Bit/384 kHz playback on front panel

Złącza PCI Express x16

2

Złącza PCI Express x4

1

Uwagi do złącz PCI

(For Ryzen™ 8700/ 8600/ 8400 Series processors)
(For Ryzen™9000/ 7000 Series processors)
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Supports up to PCIe 4.0 x4
- Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
- Supports up to PCIe 4.0 x8/ x0
- Supports up to PCIe 5.0 x16/ x0 or x8/ x8
M2_4 slot. Please refer to the PCIe configuration table in the manual for
PCI_E1 & PCI_E2 slots:
PCI_E3 slot:
PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot.
You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the
more details.

Maksymalna ilość portów USB 2.0

4

Maksymalna ilość portów USB 3.x

19

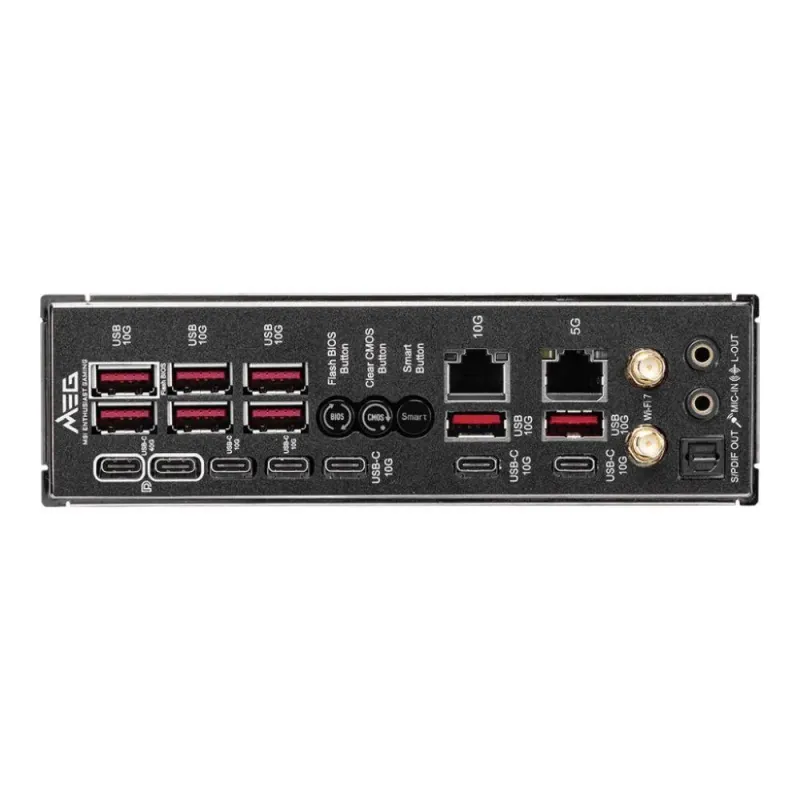

Porty USB na panelu tylnym

8x USB 3.1 + 5x USB 3.1 Type-C + 2x USB4 Type-C

Gniazda USB na płycie głównej

4x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 Type-C + 1 USB 3.2 Type-C

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Combo Fan (Pump_Sys Fan)
2x Front Panel
2x Thermal Sensor connectors
Addressable V2 RGB LED connector
CPU Fan
Chassis Intrusion (JCI)
EZ Conn-header (JAF_2)
Front Type-C Quick Charge Connector(PD_PWR1)
Tuning Controller Connector
V-check point

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

2

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Bluetooth 5.4 will be ready in Windows 11 version 24H2
Supports Bluetooth 5.4, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Wi-Fi 7 Solution
vendor’s website for details
will be ready in Windows 11 version 24H2

Specyficzne kody

EAN13

4711377276221
