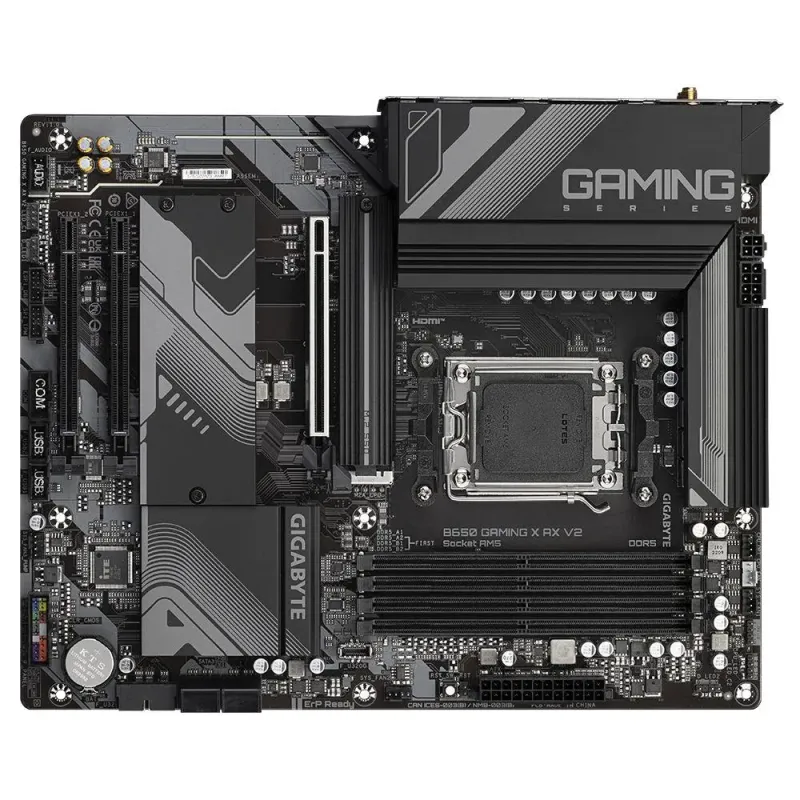

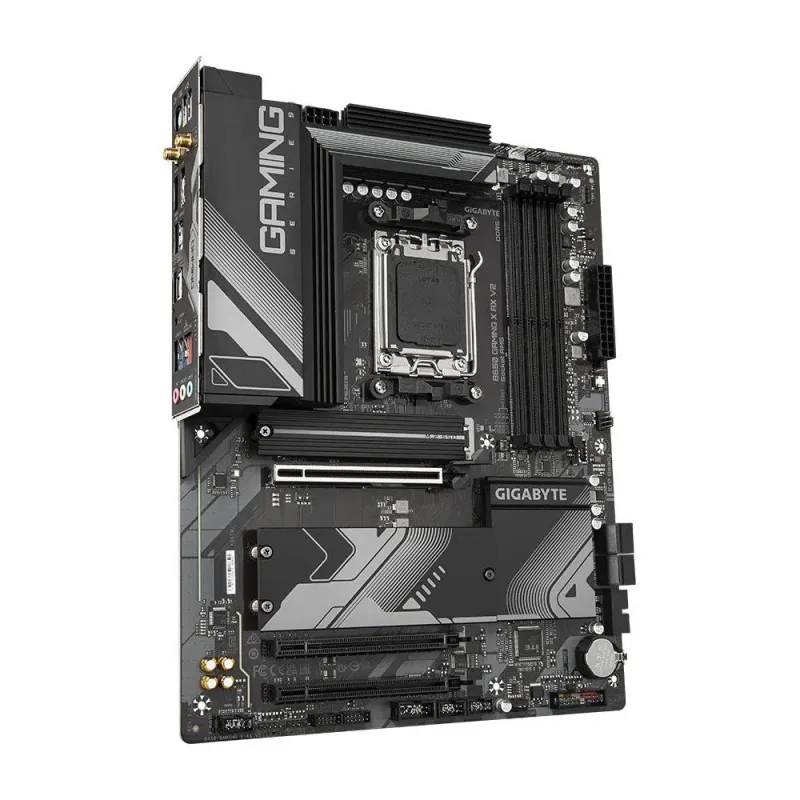

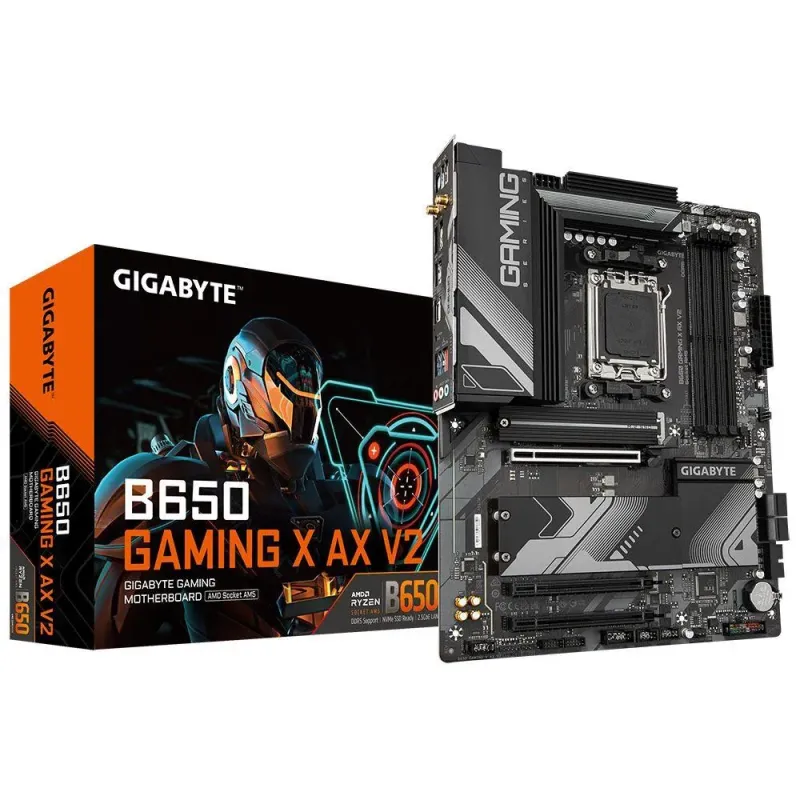

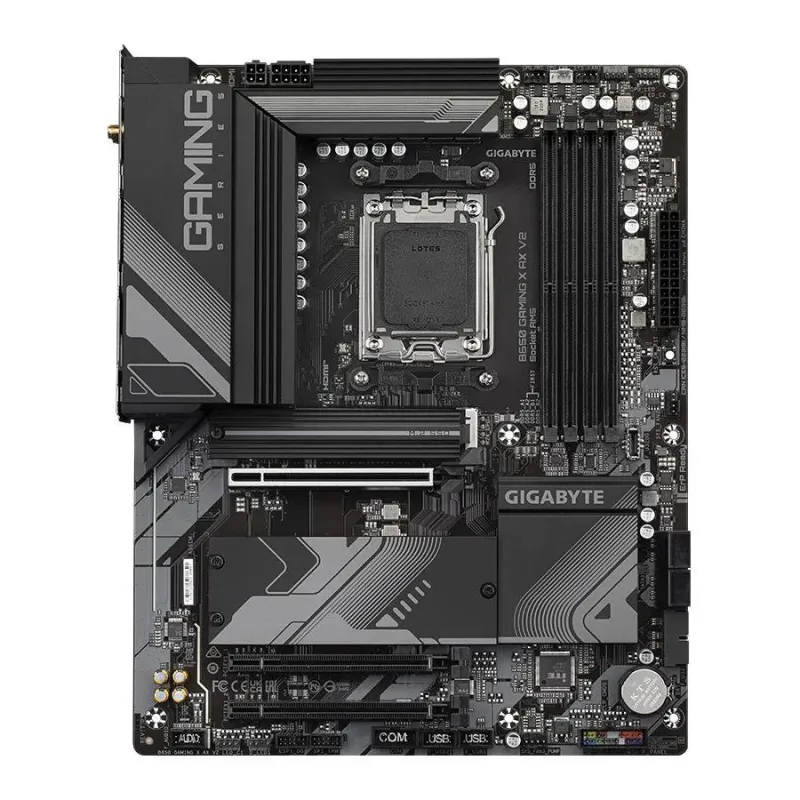

Płyta Gigabyte B650 GAMING X AX V2 /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

256 Mbit flash, AMI UEFI BIOS PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

LAN bandwidth management software
Norton® Internet Security (OEM version)

Wymiary [S x W] (mm)

305 x 224

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.3

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax

Chipset płyty głównej

AMD B650

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™

Standard pamięci

DDR5-4400
DDR5-4800
DDR5-5200
DDR5-5600 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-8000 (OC)

Uwagi do karty graficznej

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics specifications may vary depending on CPU support
Support for DisplayPort 1.4 version and HDR
Support for HDMI 2.1 version and HDCP 2.3
Support native HDMI 2.1 TMDS compatible ports

Uwagi do procesora

Support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

Memory Profile (XMP) memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support up to 192 GB (48 GB single DIMM capacity) of system memory

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SATA

- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,
4 x SATA 6Gb/s connectors
M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key,
M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs
M key, type 25110/2580 SSDs:
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
type 25110/2580 SSDs:
x4/x2 SSDs

Gniazda karty graficznej

DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek® 8-Channel High Definition Audio CODEC

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16

3

Uwagi do złącz PCI

(PCIEX1_1/2)
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Chipset:
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only
one graphics card is to be installed, be sure to install it in the PCIEX16

Maksymalna ilość portów USB 2.0

7

Maksymalna ilość portów USB 3.x

10

Porty USB na panelu tylnym

3x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Addressable LED strip headers
2x RGB (RGBW) LED strip headers
2x SMA antenna connectors (2T2R)
2x system fan headers
CPU cooler LED strip/RGB LED strip extension cable header
CPU fan/water cooling pump header
CPU fan header
Clear CMOS jumper
Front panel header
Gniazdo modułu TPM
Q-Flash Plus button
Reset button
Reset jumper
System fan/water cooling pump header

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
Support for 11ax 160MHz wireless standard
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Specyficzne kody

EAN13

4719331860073
