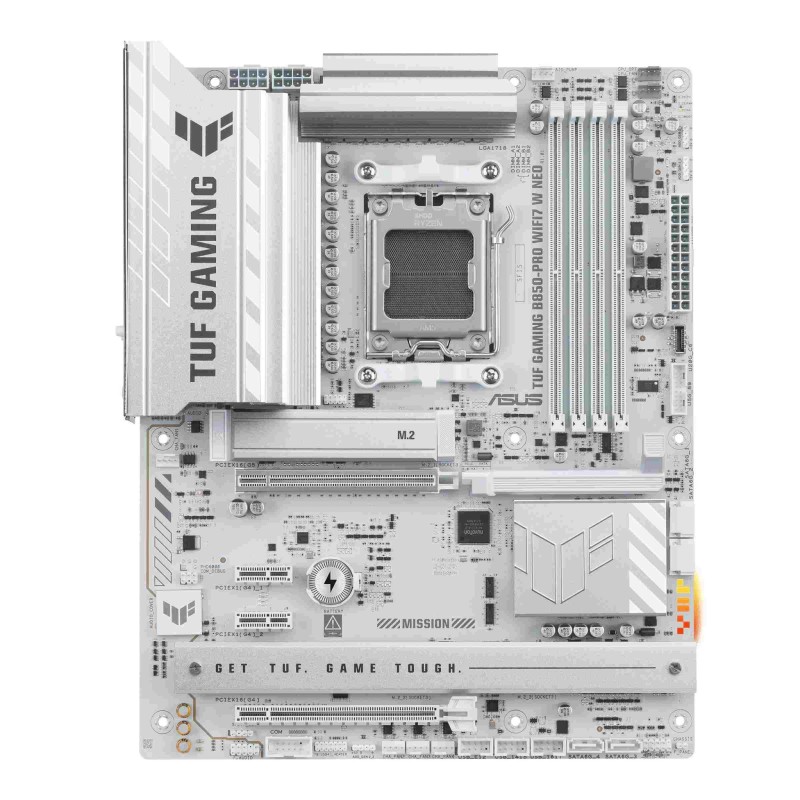

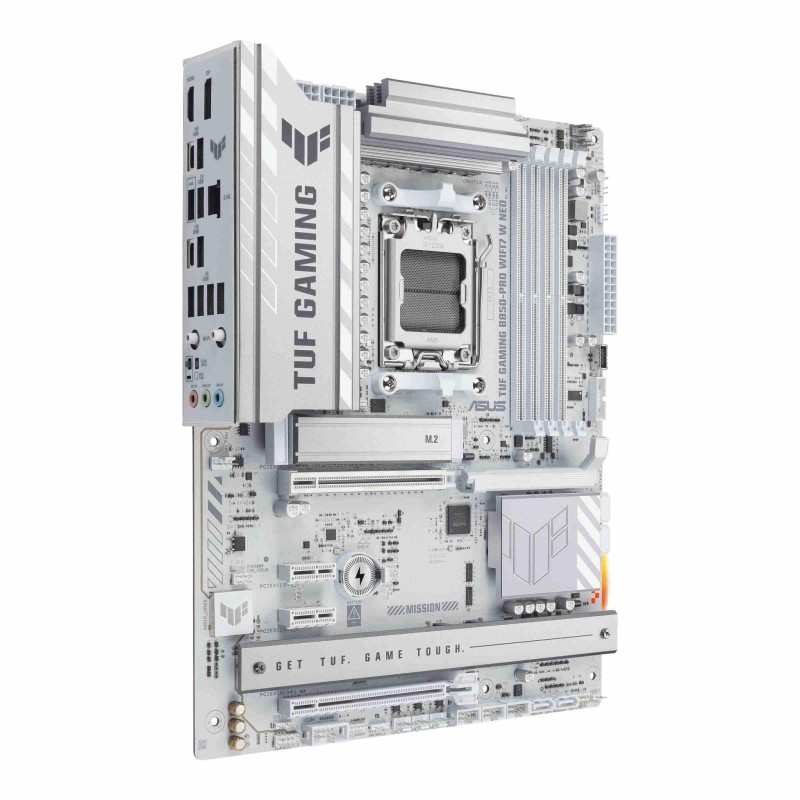

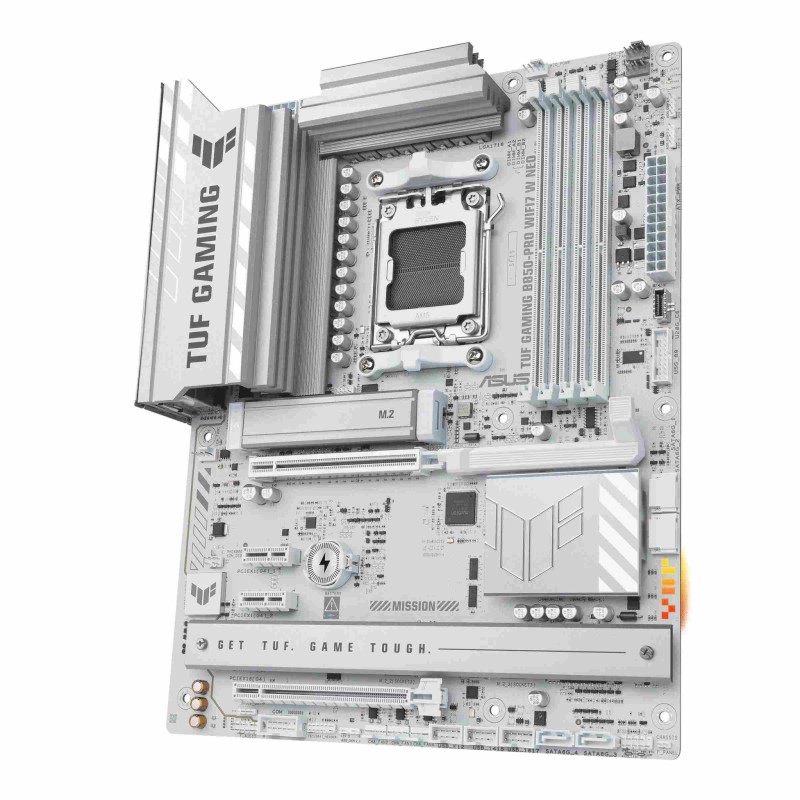

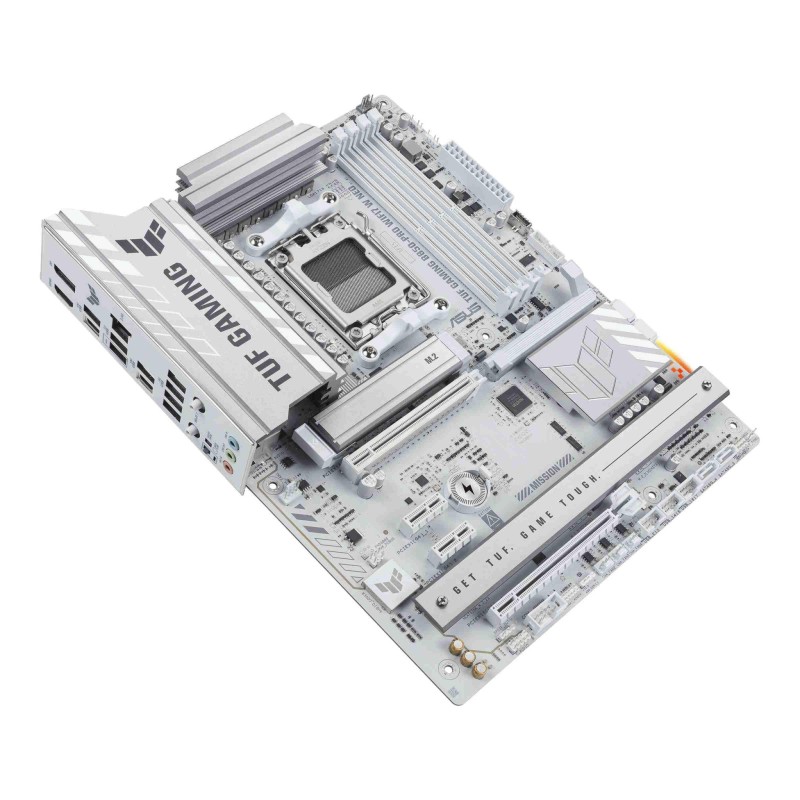

Płyta Asus TUF GAMING B850-PRO WIFI7 W NEO /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

64MB (512Mb) Flash ROM, UEFI AMI BIOS

Zawiera baterię / akumulator

Tak

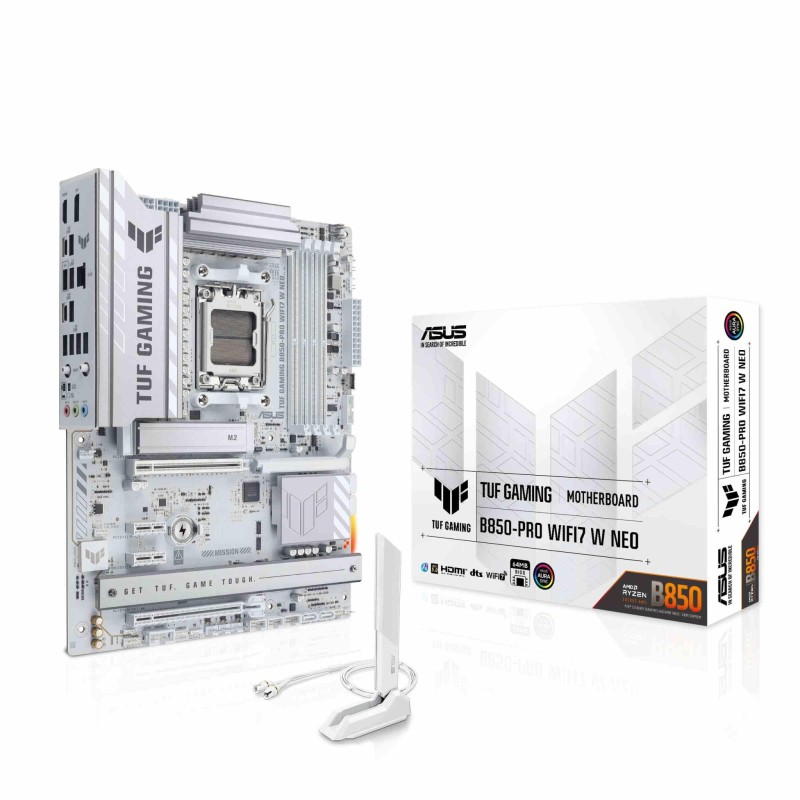

Wyposażenie dodatkowe

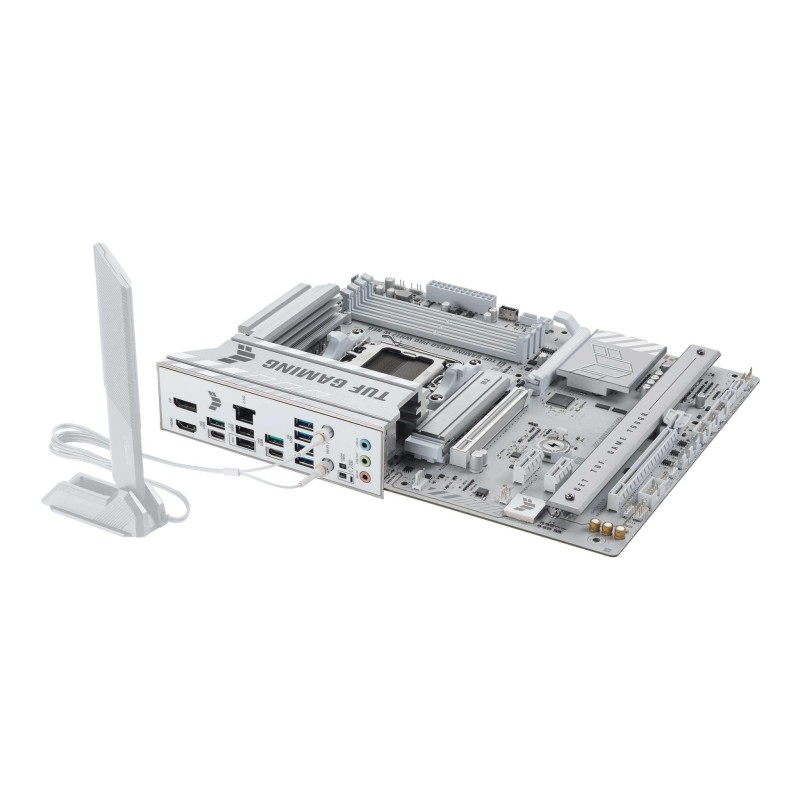

1 x ASUS WiFi Q-Antenna
1 x Quick start guide
1 x TUF Gaming sticker
2 x M.2 Rubber Packages
2 x SATA 6Gb/s cables

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD B850

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-9000+ (OC)

Uwagi do karty graficznej

Available only on processors featuring integrated graphics. Graphics
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 8K@30Hz as specified in DisplayPort 1.4.
specifications
specifications may vary between CPU types. Please refer to AMD CPU

Uwagi do procesora

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

8000+MT/s(OC)/8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
8400+MT/s(OC)/8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9000+MT/s(OC)/8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
ASUS Enhanced Memory Profile (AEMP)
ECC and Non-ECC Un-buffered DIMM
Supports AMD EXTended Profiles for Overclocking (EXPO™)

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SATA

- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mo
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
4 x SATA 6Gb/s ports
AMD B850 Chipset:
AMD RAIDXpert2 Technology:
AMD Ryzen™ 8000 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
PCIEX16(G4) or M.2_3 slot is occupied, that slot runs at PCIe 4.0 x4 mode.
The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When either the
When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter
the BIOS to adjust the default settings as required.

Gniazda karty graficznej

DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek® ALC1220P Codec 7.1-Channel High Definition Audio

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo S/PDIF Out
Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

- Audio Shielding
- Audio cover
- Dedicated audio PCB layers
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for
- Premium audio capacitors
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 32-Bit/192 kHz playback
- Unique de-pop circuit
Audio Features:
headphone and speakers
input (Line-in)

Złącza PCI Express x16

2

Złącza PCI Express x1

2

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- 2 x PCIe 4.0 x1 slots
AMD B850 Chipset:
AMD Ryzen™ 8000 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
PCIEX16(G4) or M.2_3 slot is occupied, that slot runs at PCIe 4.0 x4 mode.
Specifications vary by CPU types
The PCIEX16(G4) slot shares bandwidth with the M.2_3 slot. When either the
You can enter the BIOS to adjust the default settings as required.

Uwagi do karty sieciowej

TUF LANGuard

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

11

Porty USB na panelu tylnym

2x USB 2.0 + 4x USB 3.0 + 2x USB 3.1 + 2x USB 3.1 Type-C

Gniazda USB na płycie głównej

3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable RGB Gen 2 headers
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin Front Panel System header
Chassis intrusion header
Front Panel Audio header (F_AUDIO)
Thunderbolt™ (USB4®) header

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

21H2/22H2/23H2 only supports Wi-Fi 6E
For Windows 10, please note that no driver is available,
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth
The Bluetooth® version may vary, please refer to the Wi-Fi module
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between
Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11
Wi-Fi features may vary depending on the operating system. For Windows 11,
countries
manufacturer’s website for the latest specifications
please refer to the Wi-Fi chipset vendor’s website for details.

Specyficzne kody

EAN13

4711636435994
