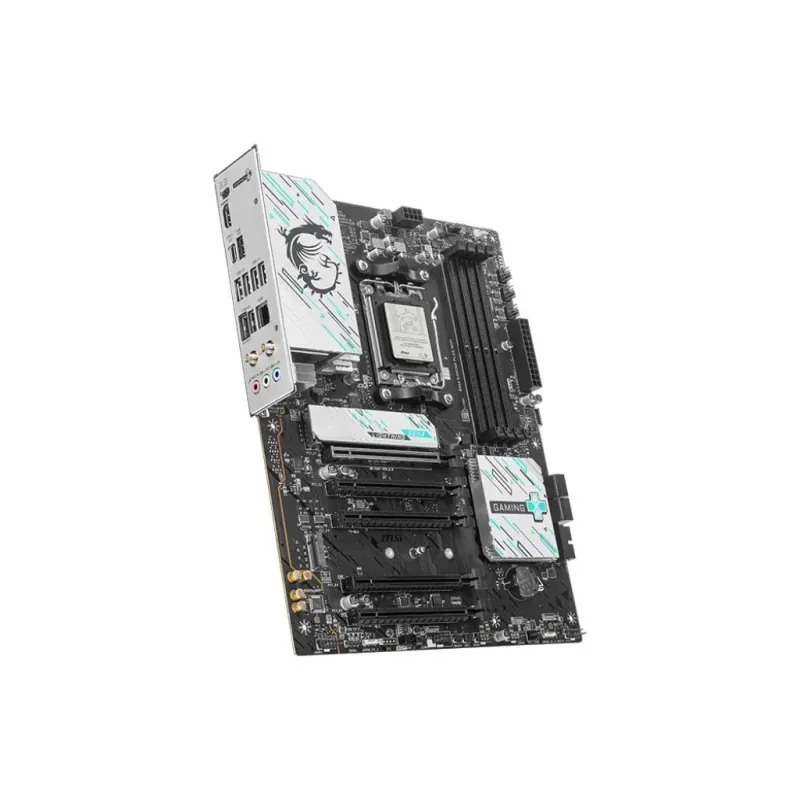

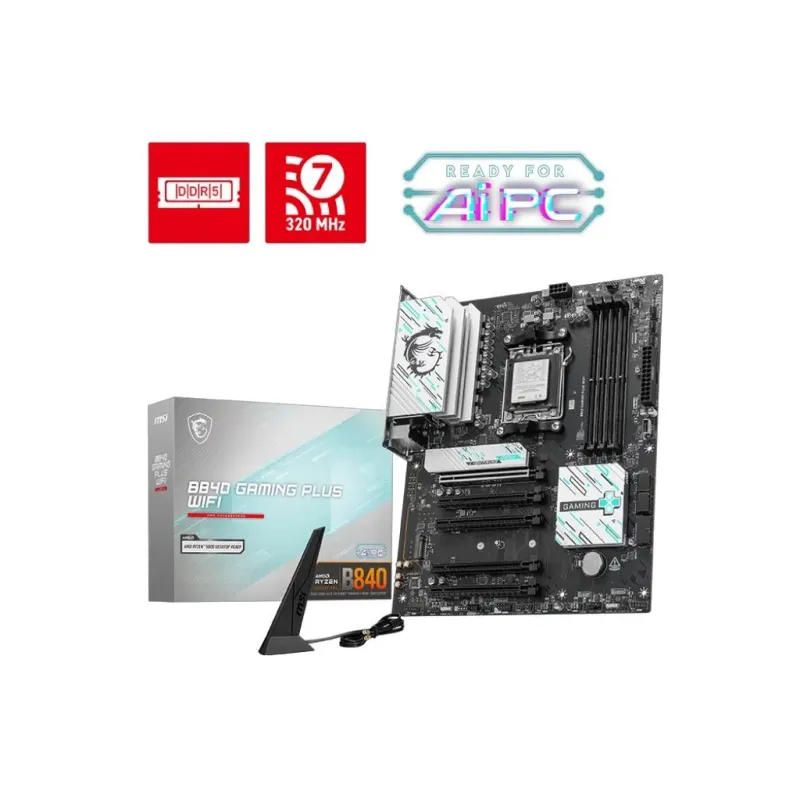

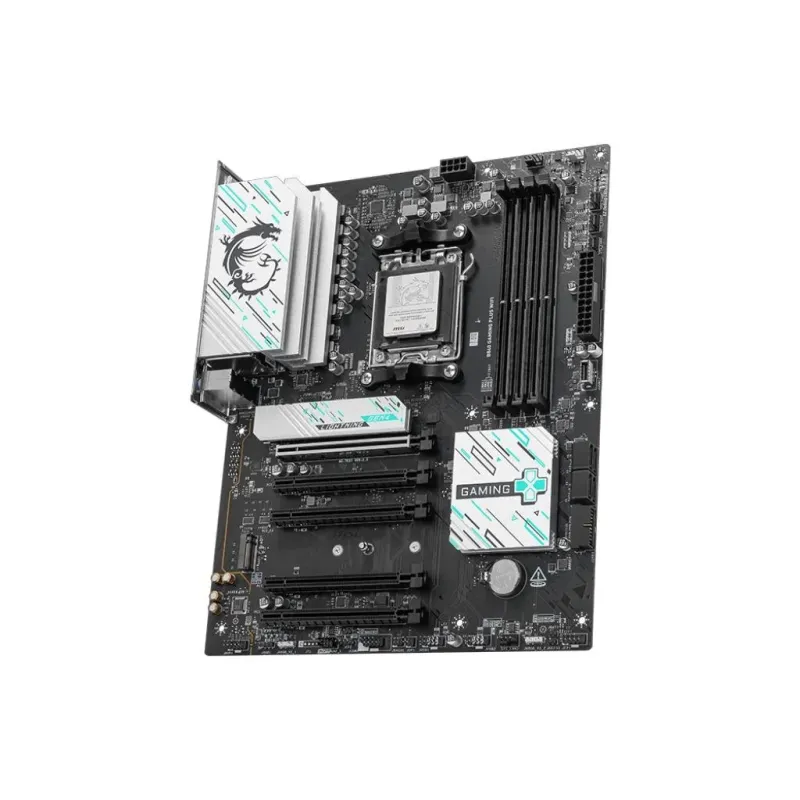

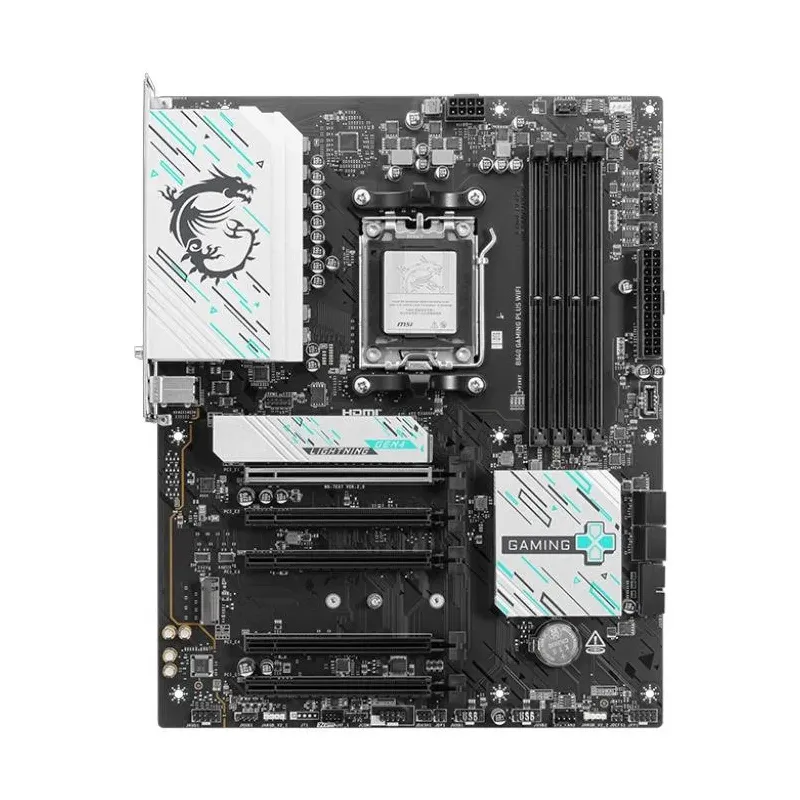

Płyta MSI B840 GAMING PLUS WIFI /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

1 to 2 EZ Conn-Cable (V1)
EZ M.2 Clip
EZ M.2 Clip II Remover
EZ Wi-Fi antenna
European Union Regulatory Notice
Quick Installation Guide
SATA cable

Wymiary [S x W] (mm)

304,8 x 243,84

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8125BG)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD B840

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-4800
DDR5-5200
DDR5-5600
DDR5-5800 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7400 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-8000 (OC)

Uwagi do karty graficznej

Available only on processors featuring integrated graphics
Graphics specifications may vary depending on the CPU installed.
Support HDMI 2.1, maximum resolution of 4K 60Hz

Uwagi do procesora

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 8000+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max. speed up to 4800+ MHz
Ryzen 9000 Series Processors max. overclocking frequency:
Supports AMD POR Speed and JEDEC Speed
Supports CUDIMM, Clock Driver bypass mode only
Supports Memory Overclocking and AMD EXPO
Supports Non-ECC, Un-buffered Memory

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 2x M.2 - RAID 0, 1

Uwagi do kontrolera SATA

- Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
- Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/8400 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
2260 devices
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/
M2_2 slot:
Please refer to the manual for M.2 SSD heatsink restrictions
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
devices

Gniazda karty graficznej

HDMI

Zintegrowana karta dźwiękowa

Realtek® ALC897 7.1-Channel High Definition Audio

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16

5

Uwagi do złącz PCI

- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E1 slot:
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

7

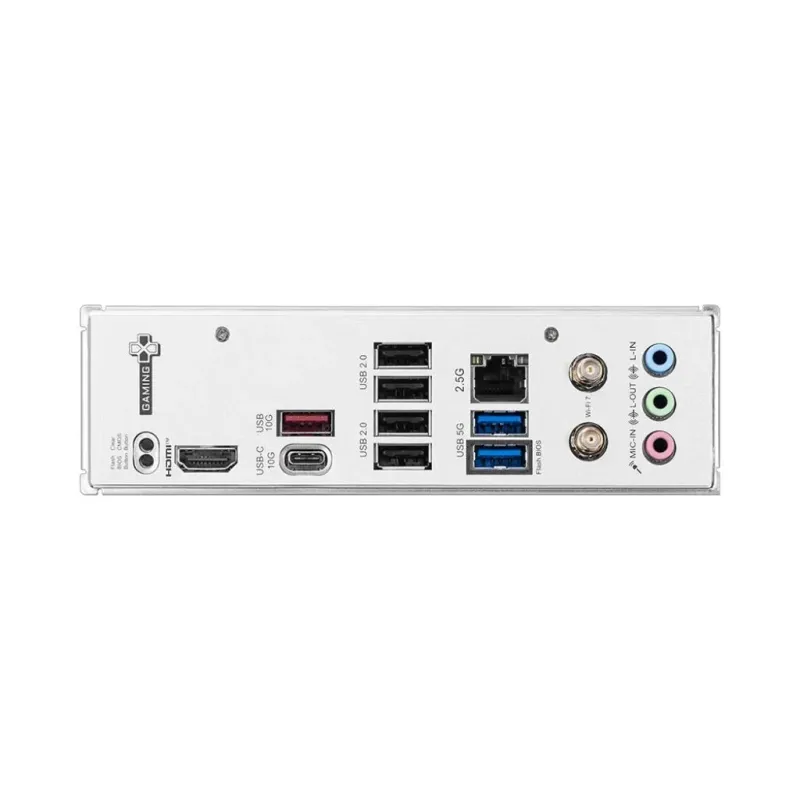

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Addressable V2 RGB LED connector
2x Antenna Ports
2x Front Panel
4x EZ Debug LED
4x System Fan
CPU Fan
Combo Fan (Pump_Sys Fan)
EZ Conn-header (JAF_1)
Gniazdo modułu TPM
RGB LED connector
Tuning Controller Connector
Złącze czujnika otwarcia obudowy

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Bluetooth 5.4 will be ready in Windows 11 version 24H2
Supports Bluetooth® 5.4**, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Wi-Fi 7 Solution
vendor’s website for details
will be ready in Windows 11 version 24H2

Specyficzne kody

EAN13

4711377286589
