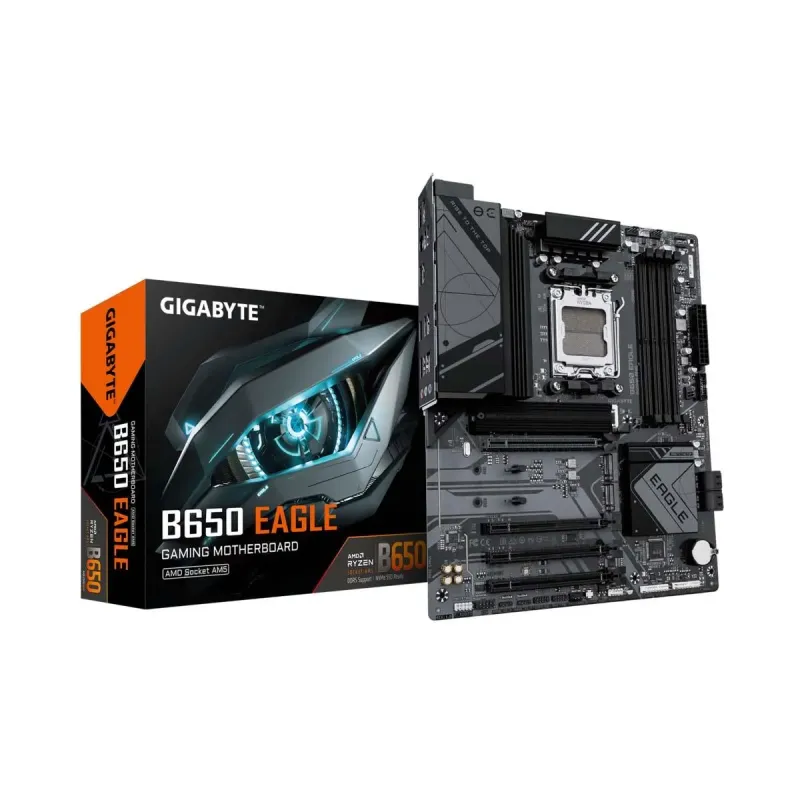

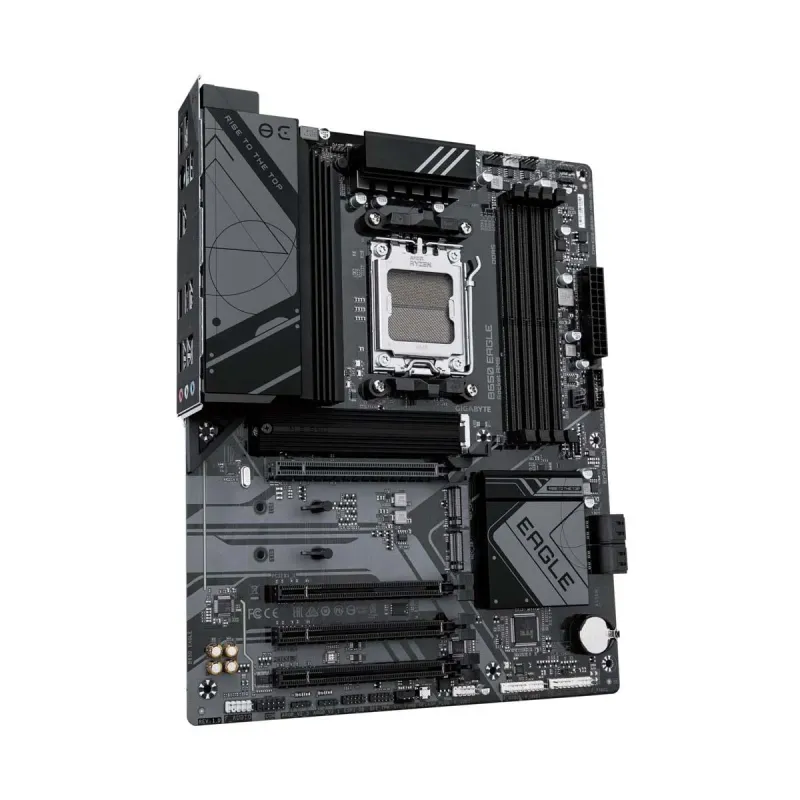

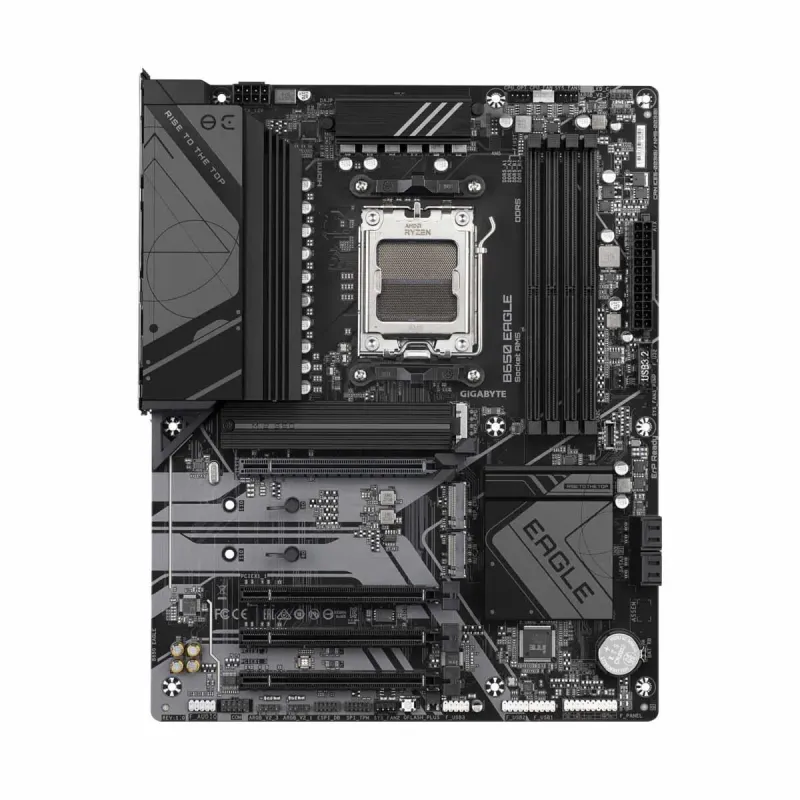

Płyta Gigabyte B650 EAGLE /AMD B650/DDR5/SATA3/M.2/PCIe4.0/AM5/ATX

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

256 Mbit Flash AMI UEFI BIOS,PnP 1.0a,DMI 2.7,WfM 2.0,SM BIOS 2.7,ACPI 5.0

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

Norton® Internet Security (OEM version), LAN bandwidth management software

Wymiary [S x W] (mm)

305 x 224

Opakowanie

BOX

Port Bluetooth

Nie

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 1 Gigabit LAN Realtek®

Port Wi-Fi

Nie

Chipset płyty głównej

AMD B650

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-4400
DDR5-4800
DDR5-5200
DDR5-5600 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7600 (OC)

Uwagi do karty graficznej

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Graphics specifications may vary depending on CPU support
Support for DisplayPort 1.4 version
Support for HDMI 2.1 version and HDCP 2.3
Support native HDMI 2.1 TMDS compatible ports

Uwagi do procesora

Support for: AMD Ryzen™ 7000 Series Processors & 8000 Series Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

Extreme Memory Profile (XMP) memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support up to 256 GB (64 GB single DIMM capacity)

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10

Uwagi do kontrolera SATA

- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
4 x SATA 6Gb/s connectors
Chipset:
M key, type 22110/2280 SSDs:
M key, type 25110/2580 SSDs:
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
support) (M2C_SB)

Gniazda karty graficznej

DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek® 8-Channel High Definition Audio CODEC

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

To configure 7.1channel audio, access the audio software for audio settings
You can change the functionality of an audio jack using the audio software

Złącza PCI Express x16

4

Uwagi do złącz PCI

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU
PCIe 3.0 and running at x1
Series-Phoenix 2 processor is used
he PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000
one graphics card is to be installed, be sure to install it in the PCIEX16
slot
supporting PCIe 3.0 and running at x1

Uwagi do karty sieciowej

1 Gbps/100 Mbps/10 Mbps

Maksymalna ilość portów USB 2.0

12

Maksymalna ilość portów USB 3.x

6

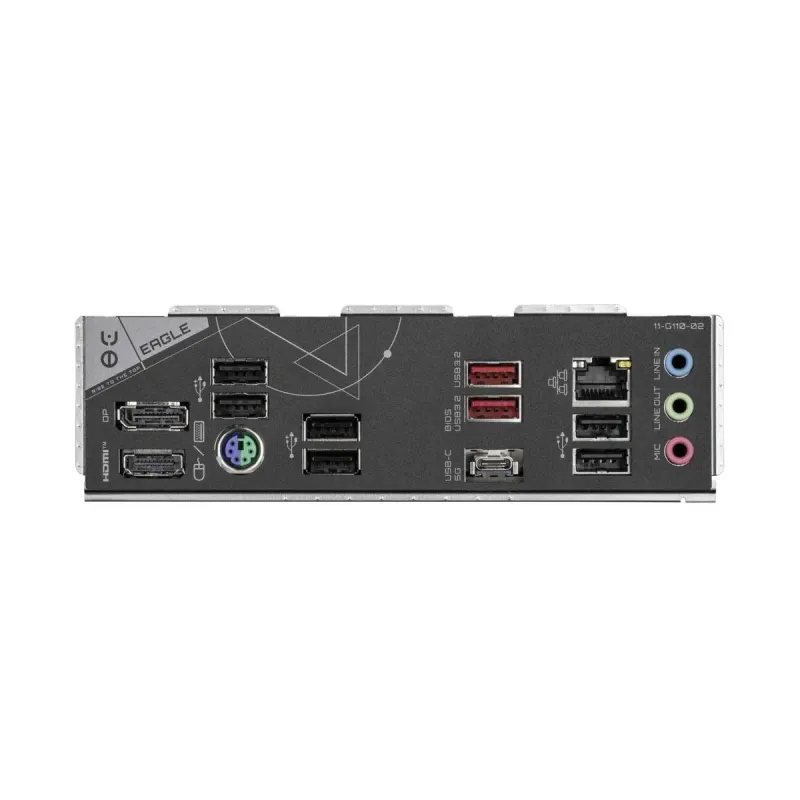

Porty USB na panelu tylnym

6x USB 2.0 + 2x USB 3.1 + 1x USB 3.0 Type-C

Gniazda USB na płycie głównej

3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x system fan headers
3x Addressable RGB Gen2 LED strip headers
CPU fan/water cooling pump header
CPU fan header
Clear CMOS jumper
Front Panel Audio header (AAFP)
Front panel header
Gniazdo modułu TPM
Q-Flash Plus button
RGB LED strip header
System fan/water cooling pump header

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Specyficzne kody

EAN13

4719331863081
