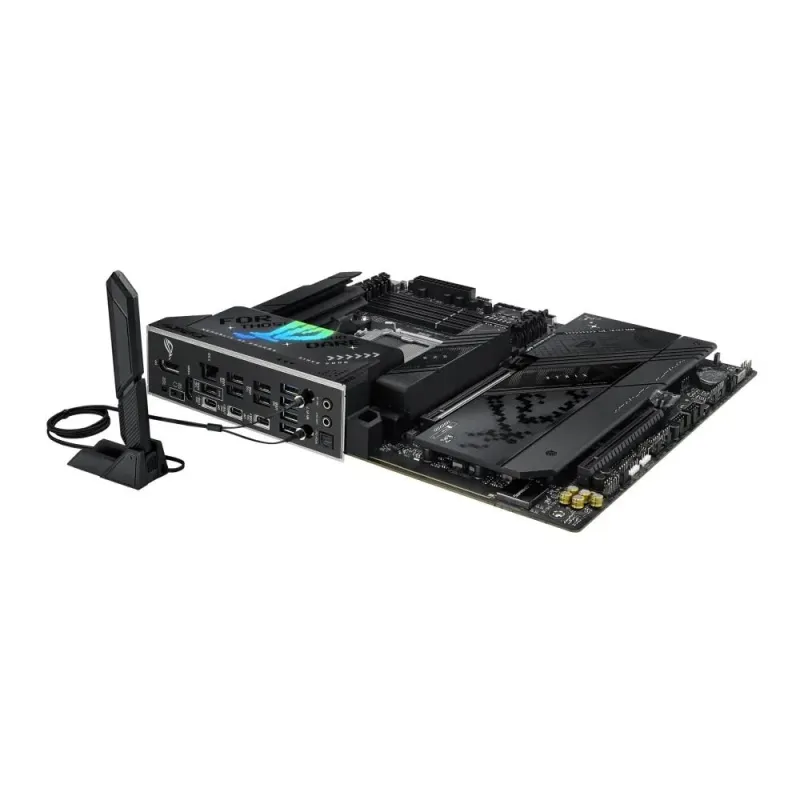

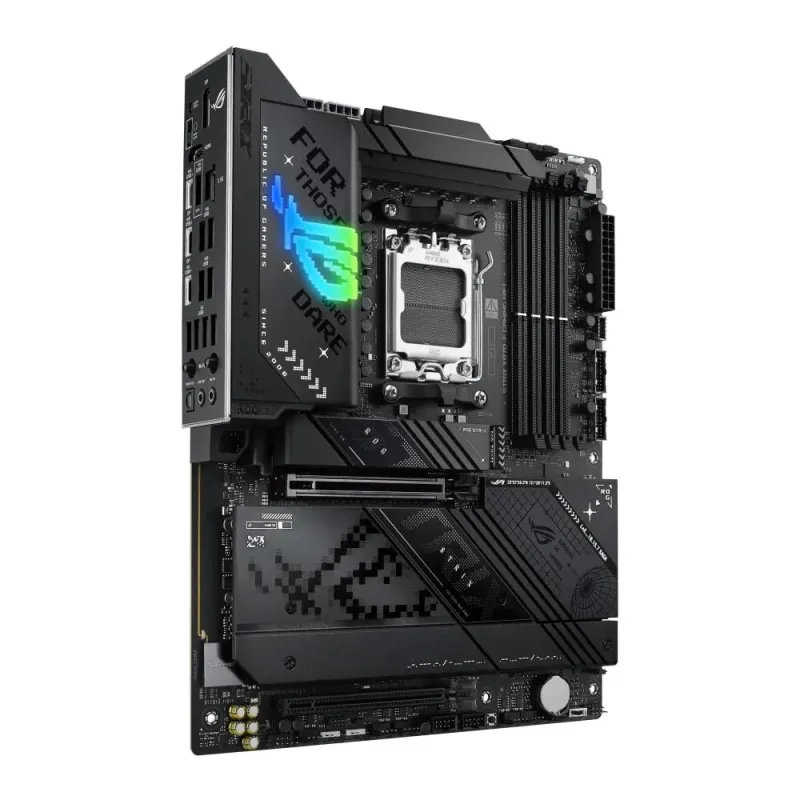

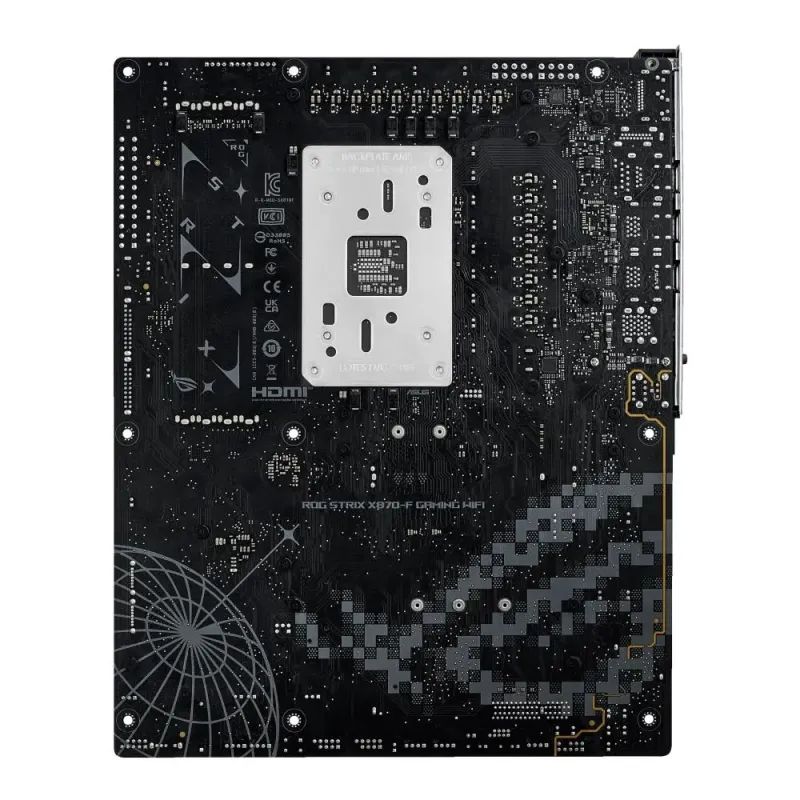

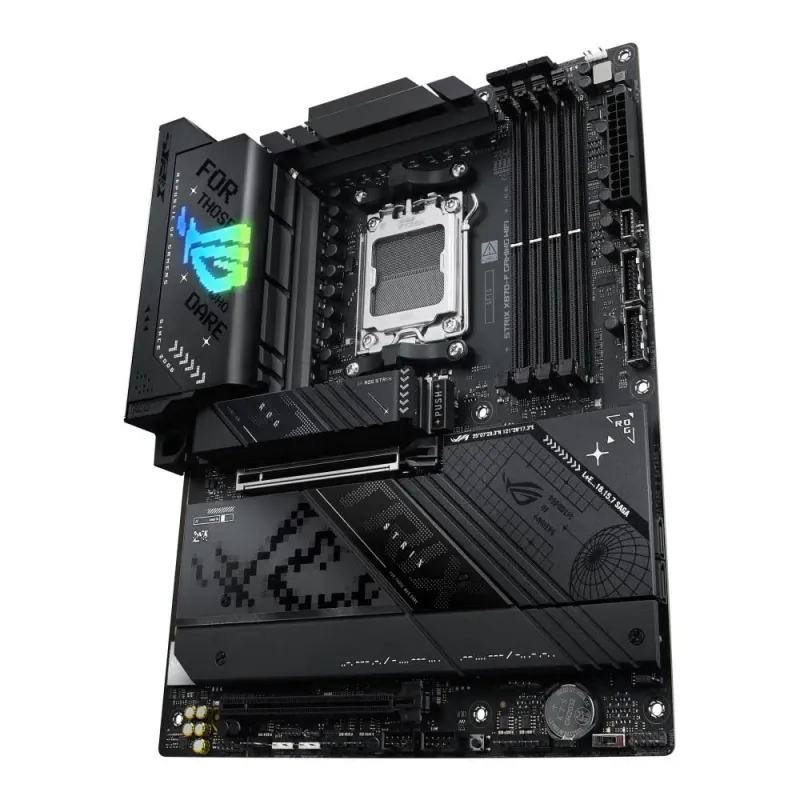

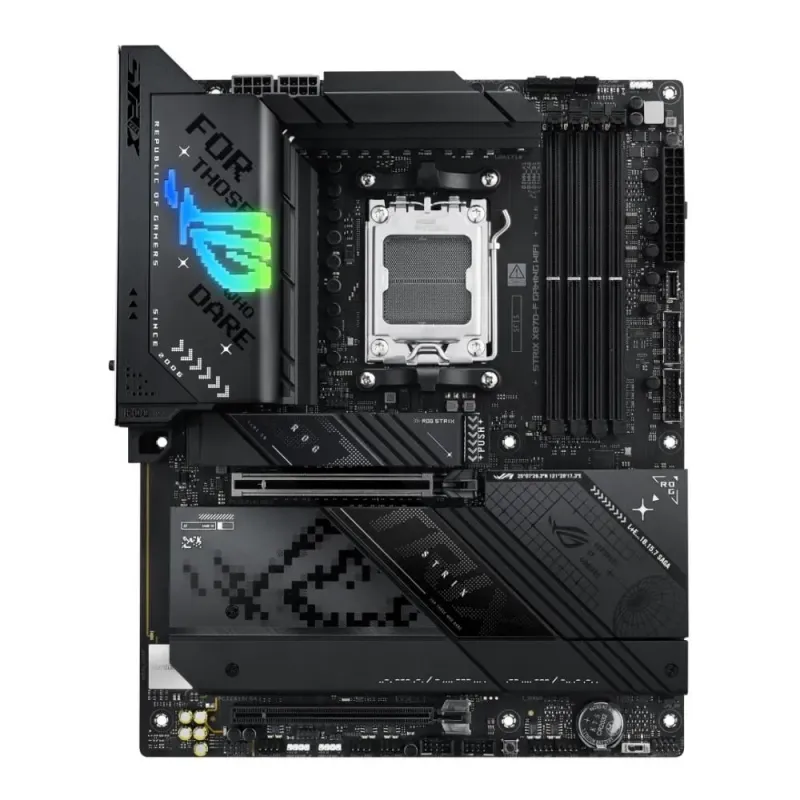

Płyta Asus ROG STRIX X870-F GAMING WIFI /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

256 Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE

Zawiera baterię / akumulator

Tak

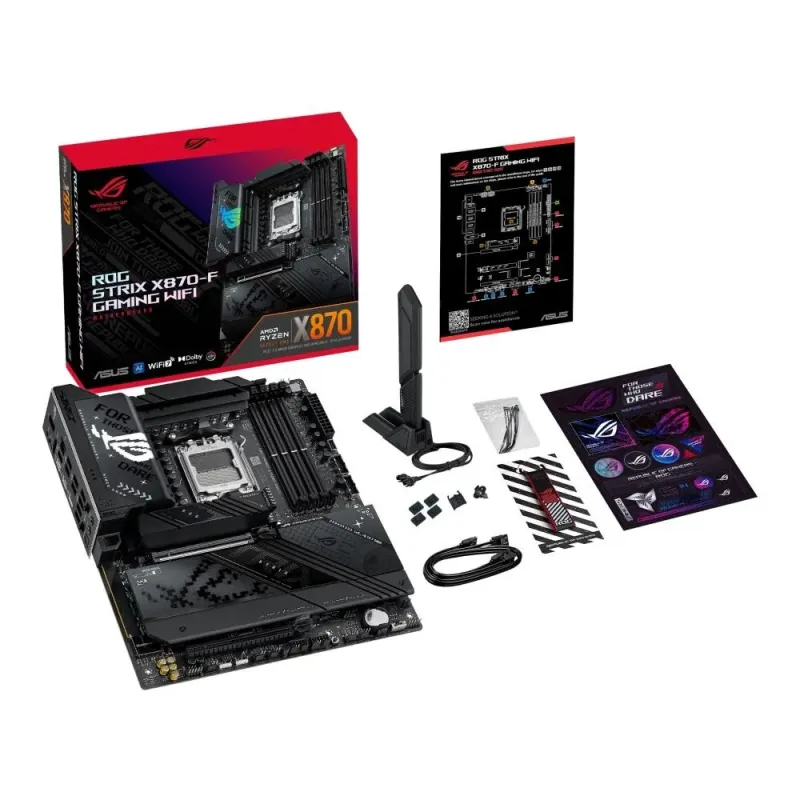

Wyposażenie dodatkowe

1x ASUS WiFi Q-Antenna
1x Cable ties package
1x M.2 Q-Latch package
1x M.2 Q-Slide package
1x Quick start guide
1x ROG Strix stickers
1x ROG key chain
1x Thermal pad for M.2 22110
2x SATA 6Gb/s cables
4x M.2 rubber packages

Wymiary [S x W] (mm)

305 x 244

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Uwagi do karty graficznej

Please refer to AMD CPU specifications
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Supports max. 8K@30Hz as specified in DisplayPort 1.4

Uwagi do procesora

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile (AEMP)
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Overclocking (EXPO)
Processors, ECC and Non-ECC, Un-buffered
Supports AMD Extended Profiles for
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series

Zintegrowany kontroler SATA

Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA

- 2 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and
AMD Ryzen 8000 Series Desktop Processors:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
AMD X870 Chipset:
M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD
M.2_2 will be disabled when using AMD Ryzen 8000 Series Desktop Processors
M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD
SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series
device, PCIEX16(G4) will be disabled
device, PCIEX16(G5) will run x8 only

Gniazda karty graficznej

2x USB4 Type-C
DisplayPort
HDMI

Zintegrowana karta dźwiękowa

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

Audio Cover
High quality 120 dB SNR stereo playback output and 110 dB SNR recording
If you wish to use spatial audio, make sure to connect your audio output
Impedance sense for front and rear headphone outputs
Premium audio capacitors
Rear optical S/PDIF out port
Savitech SV3H712 AMP
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Supports up to 32-Bit/384 kHz playback on front panel
SupremeFX Shielding Technology
The LINE OUT port on the rear panel does not support spatial audio
device to the audio jack on the front panel of your chassis or use a USB
interface audio device

Złącza PCI Express x16

1

Złącza PCI Express x1

2

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
AMD X870 Chipset:
Please check the PCIe bifurcation table on the support site
Specifications vary by CPU types
To ensure compatibility of the device installed, please refer to

Uwagi do karty sieciowej

ASUS LANGuard

Maksymalna ilość portów USB 2.0

4

Maksymalna ilość portów USB 3.x

15

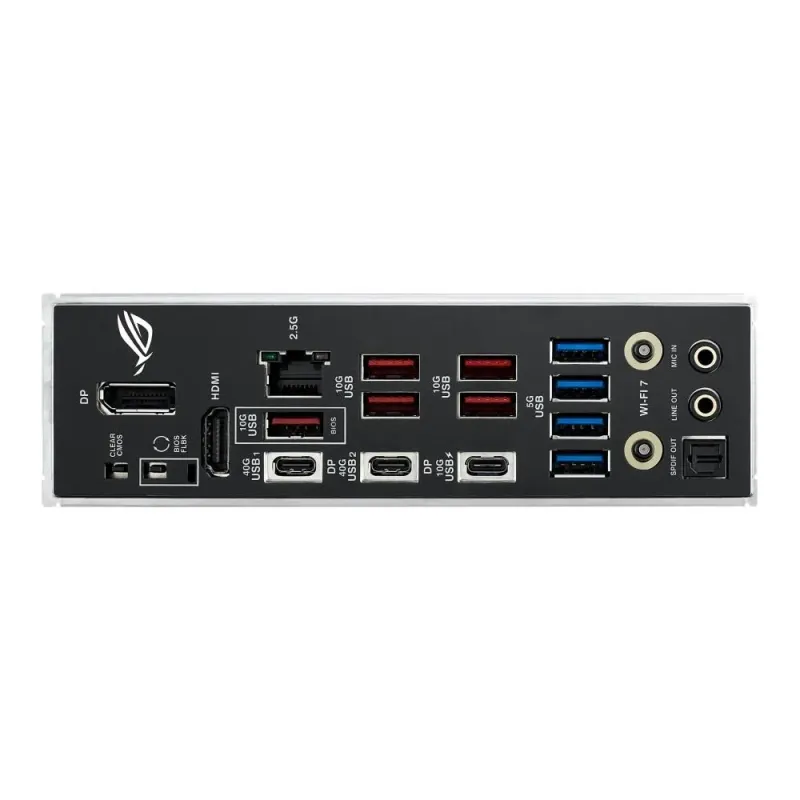

Porty USB na panelu tylnym

4x USB 3.0 + 6x USB 3.1 + 2x USB4 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
5x 4-pin Chassis Fan header(s)
10-1 pin System Panel header
Alteration PCIe mode switch
BIOS FlashBack button
CPU Over Voltage jumper
Chassis intrusion header
Clear CMOS button(s)
Start button
Thermal Sensor header
Wi-Fi module with an antenna connector

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

2

Uwagi do WiFi / BT

2x2 Wi-Fi 7 (802.11be)
For Windows 10, please note that no driver is available, refer to the Wi-Fi
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate
The Bluetooth version may vary, please refer to the Wi-Fi module
Wi-Fi features may vary depending on the operating system
chipset vendor's website for details
functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
manufacturer's website for the latest specifications

Specyficzne kody

EAN13

4711387732045
