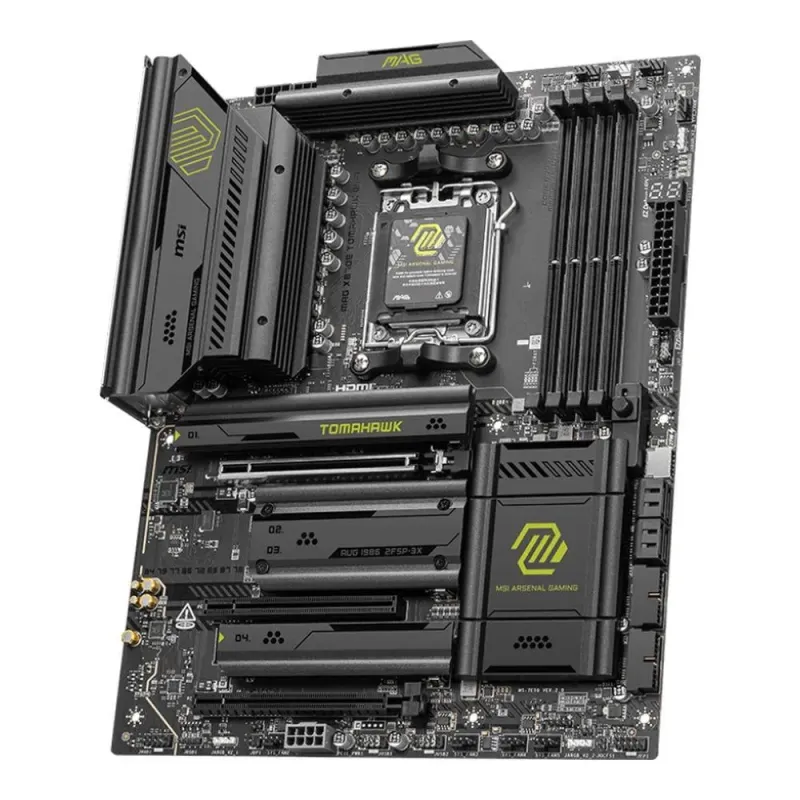

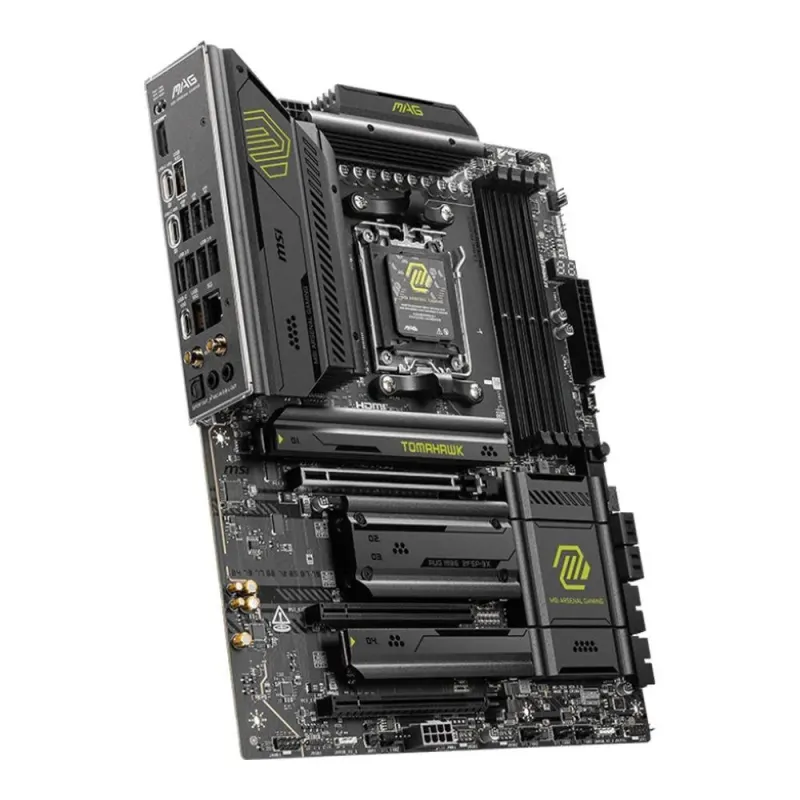

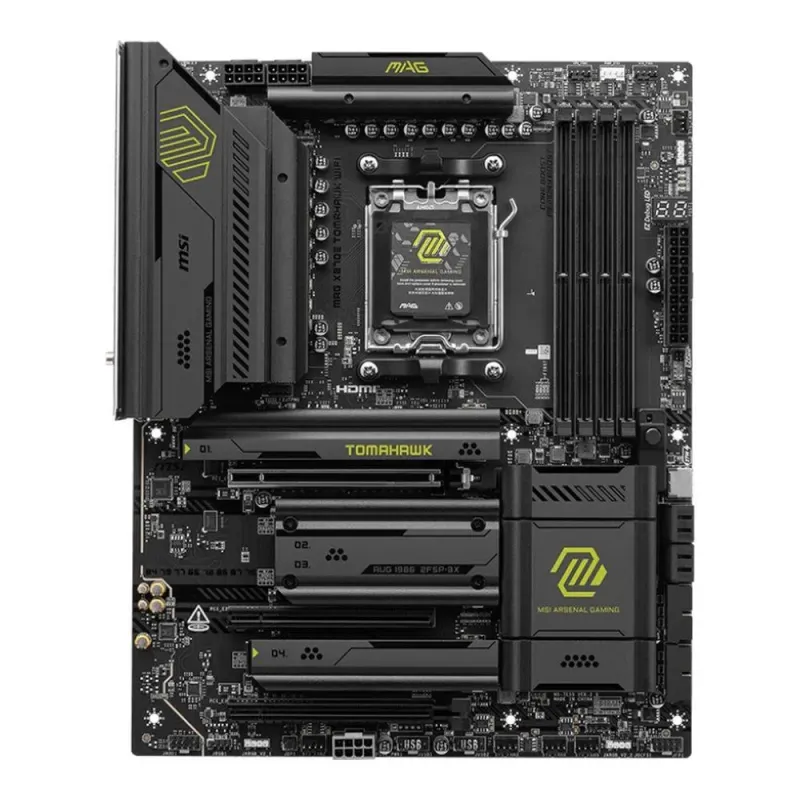

Płyta MSI MAG X870E TOMAHAWK WIFI /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Zawiera baterię / akumulator

Tak

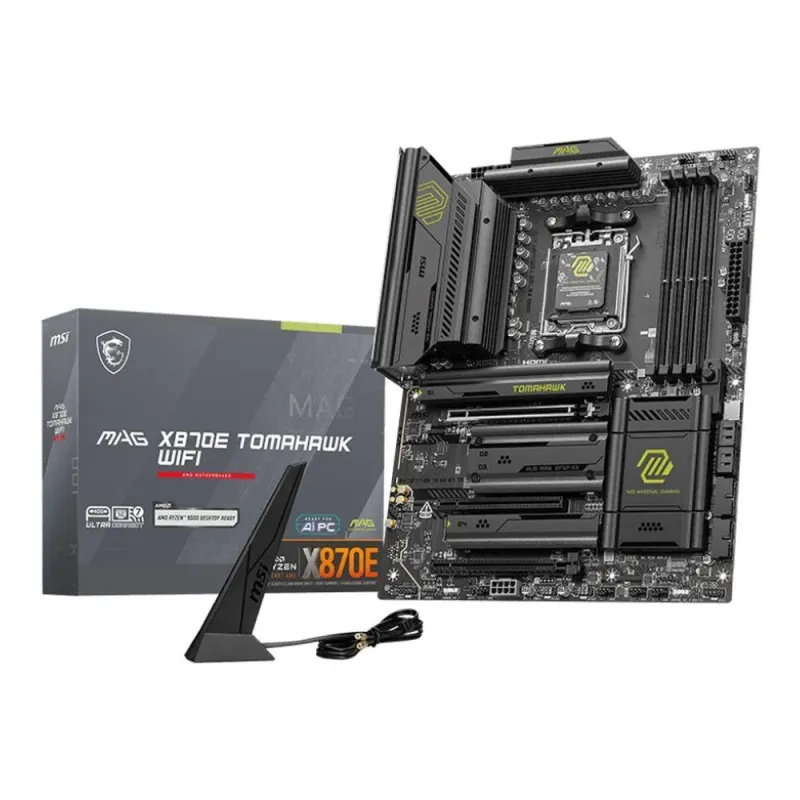

Wyposażenie dodatkowe

EZ M.2 Clip II Removal
EZ Wi-Fi antenna

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 5 Gigabit LAN Realtek® 8126

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-4800
DDR5-5000
DDR5-5200
DDR5-5400
DDR5-5600 (OC)
DDR5-5800 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7400 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-8000 (OC)
DDR5-8200 (OC)
DDR5-8266 (OC)
DDR5-8333 (OC)
DDR5-8400 (OC)

Uwagi do karty graficznej

Available only on processors featuring integrated graphics
Graphics specifications may vary depending on the CPU installed.
Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum
resolution of 4K@60Hz

Uwagi do procesora

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
Supports AMD POR Speed and JEDEC Speed
Supports CUDIMM, Clock Driver bypass mode only
Supports Dual-Channel mode
Supports Memory Overclocking and AMD EXPO
Supports Non-ECC, Un-buffered Memory

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,
- M.2_2 Source (From CPU) supports up to PCIe 5.0 x4,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4,
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4,
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- The M2_2 slot will be unavailable when using
M.2_1:
M.2_2:
Ryzen™ 8000 Series processors
supports 2280/2260 devices
supports 22110/2280 devices

Gniazda karty graficznej

2x USB4 Type-C
HDMI

Zintegrowana karta dźwiękowa

Realtek® ALC4080 7.1-Channel USB High Performance Audio CODEC

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

Supports up to 32-Bit/384 kHz playback on front panel

Złącza PCI Express x16

3

Uwagi do złącz PCI

- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
PCI_E1 slot:

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

11

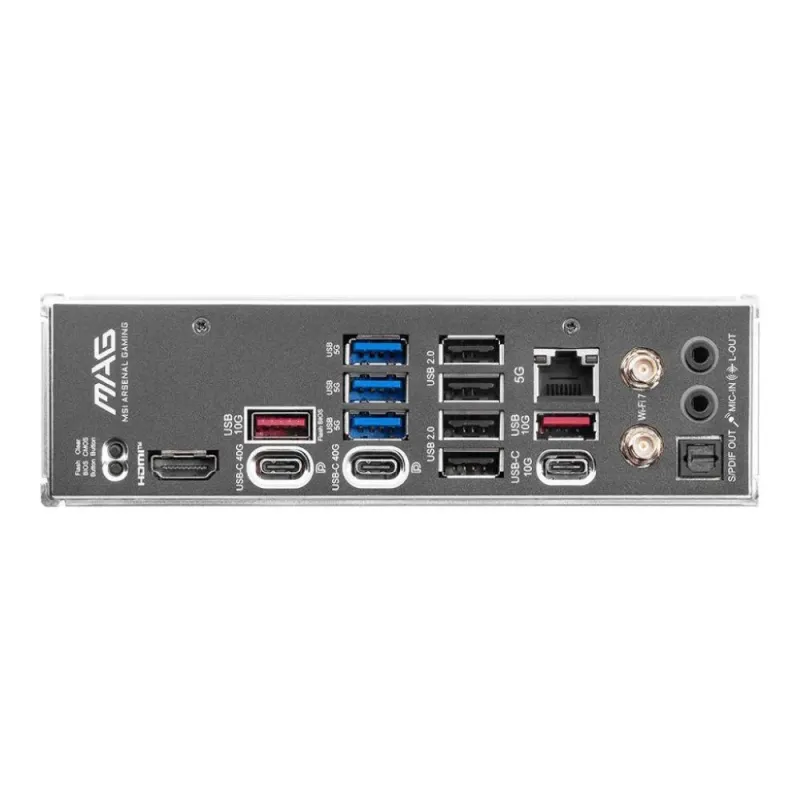

Porty USB na panelu tylnym

4x USB 2.0 + 3x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C + 2x USB4 Type-C

Gniazda USB na płycie głównej

4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Front Panel
3x Addressable V2 RGB LED connector
6x System Fan
CPU Fan
Chassis Intrusion (JCI)
Combo Fan (Pump_Sys Fan)
EZ Conn-header (JAF_2)
RGB LED connector
TPM pin header

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

2

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Bluetooth 5.4 will be ready in Windows 11 version 24H2
Supports Bluetooth 5.4, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Wi-Fi 7
vendor’s website for details
will be ready in Windows 11 version 24H2

Specyficzne kody

EAN13

4711377291927
