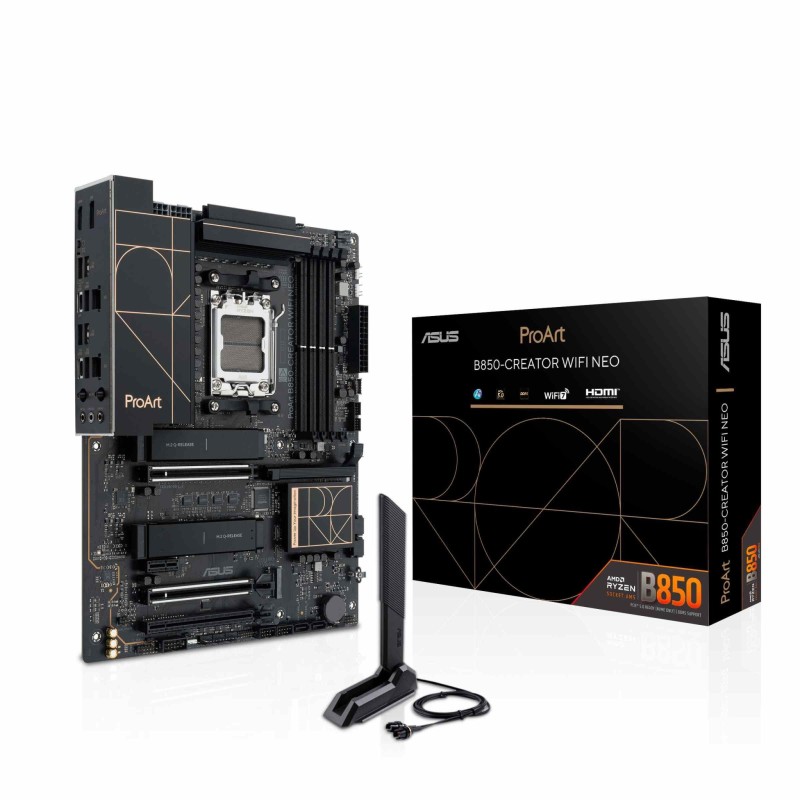

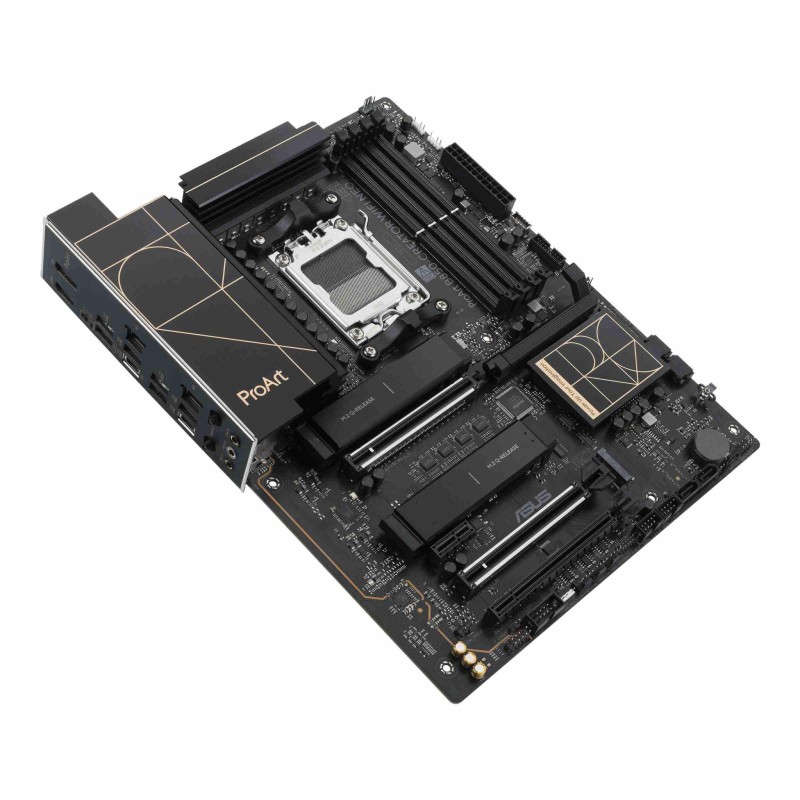

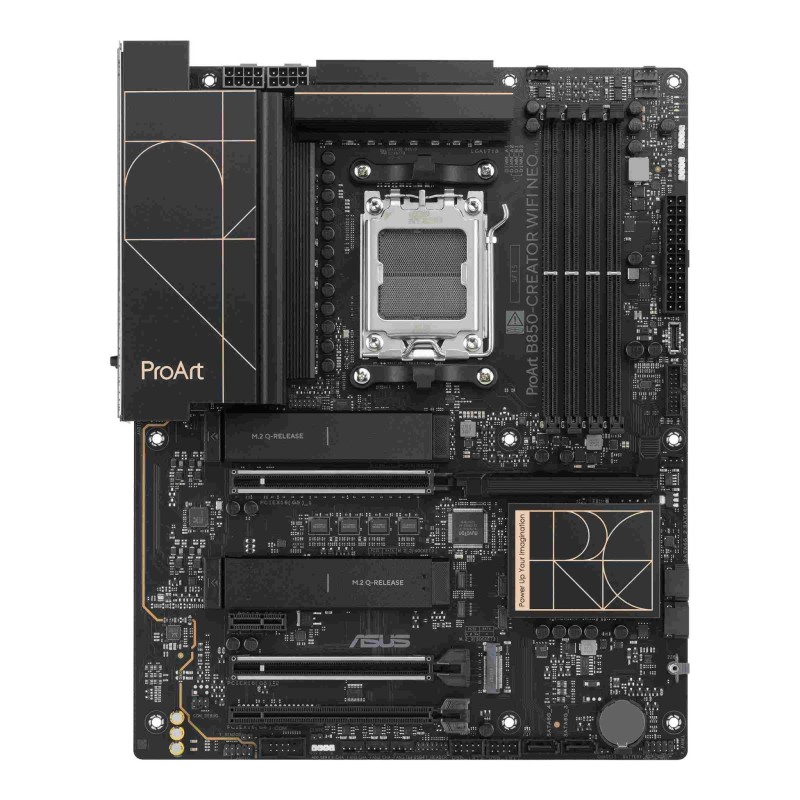

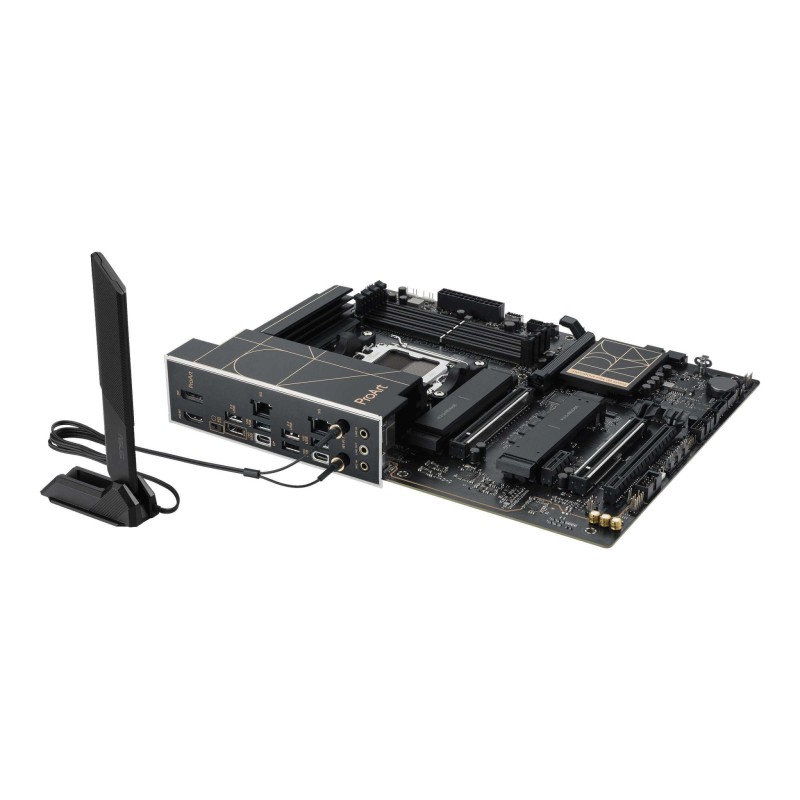

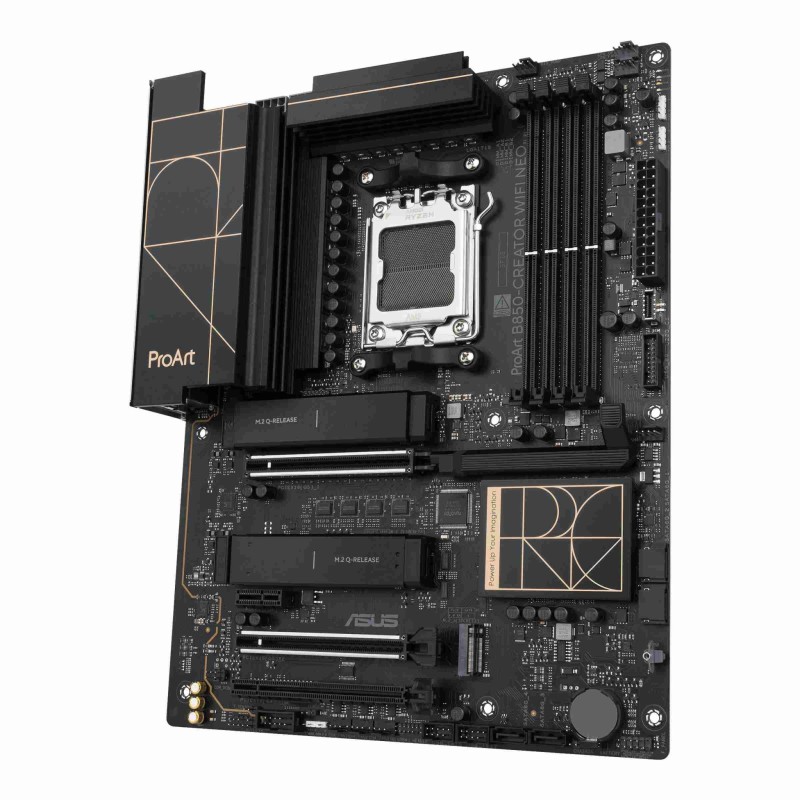

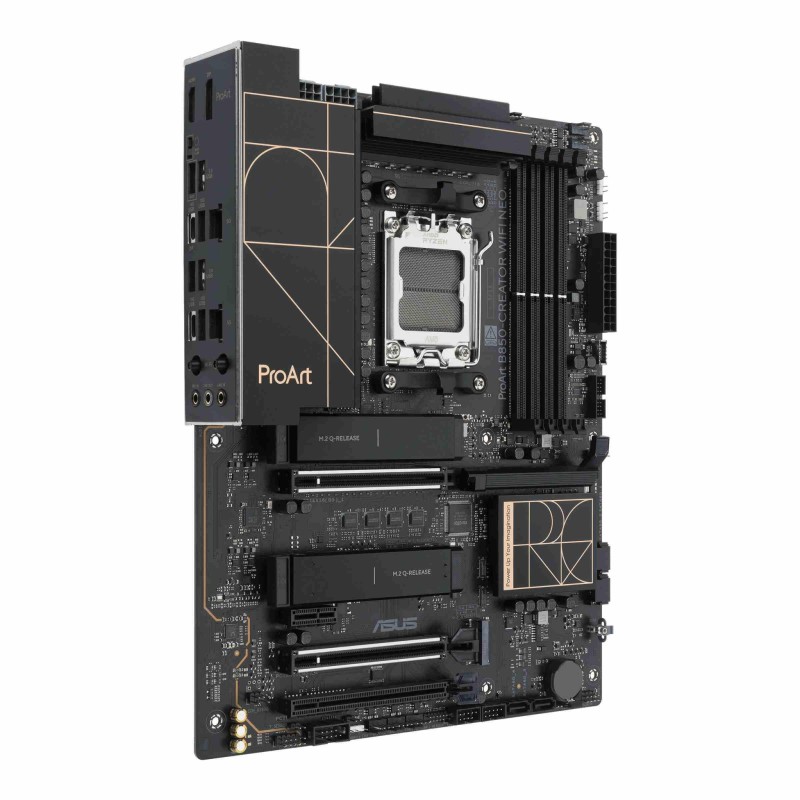

Płyta Asus PROART B850-CREATOR WIFI NEO /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

64MB (512Mb) Flash ROM, UEFI AMI BIOS

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

1 x ACC Express Activation Key Card
1 x ASUS WiFi Q-Antenna
1 x M.2 Q-Slide package (2IN1)
1 x ProArt accessory bag
1 x Q-connector
1 x Quick start guide
1 x Rubber package for M.2 (2IN1)
1 x Screw for M.2 Q-Latch(1IN1)
2 x SATA 6Gb/s cables

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

2x 5 Gigabit LAN Realtek®

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD B850

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-9000+ (OC)

Uwagi do karty graficznej

Available only on processors featuring integrated graphics. Graphics
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 8K@30Hz as specified in DisplayPort 1.4
specifications
specifications may vary between CPU types. Please refer to AMD CPU

Uwagi do procesora

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile (AEMP)
ECC and Non-ECC Un-buffered DIMM
Supports AMD EXTended Profiles for Overclocking (EXPO™)

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SATA

- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
4 x SATA 6Gb/s ports
AMD B850 Chipset:
AMD RAIDXpert2 Technology:
AMD Ryzen™ 7000 & 9000 Series Desktop Processors and AMD EPYC™ 4005 Series
AMD Ryzen™ 8000 Series Desktop Processors:
Processors:
The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be
disabled when M.2_3 runs.

Gniazda karty graficznej

DisplayPort
HDMI
USB Type-C

Zintegrowana karta dźwiękowa

Realtek® ALC1220P Codec 7.1-Channel High Definition Audio

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

- Dedicated audio PCB layers
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for
- Premium audio capacitors
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 32-Bit/192 kHz playback
- Unique de-pop circuit
Audio Features:
headphone and speakers
input (Line-in)

Złącza PCI Express x16

3

Złącza PCI Express x1

1

Uwagi do złącz PCI

- 1 x PCIe 4.0 x1 slots
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
AMD B850 Chipset:
AMD Ryzen™ 8000 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series
Processors:
Specifications vary by CPU types
The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be
When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each.
disabled when M.2_3 runs

Uwagi do karty sieciowej

ASUS LANGuard

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

7

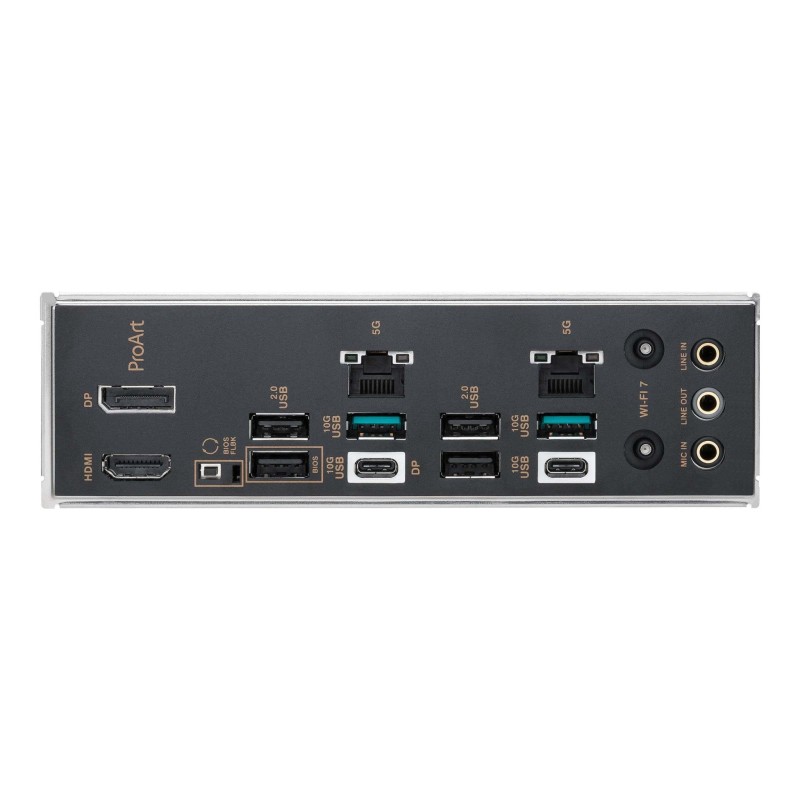

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.1 + 2x USB 3.1 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable RGB Gen 2 headers
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin Front Panel System header
Clear CMOS header
Front Panel Audio header (F_AUDIO)
Gniazdo modułu TPM
Thermal Sensor header
Thunderbolt™ (USB4®) header

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

21H2/22H2/23H2 only supports Wi-Fi 6E
For Windows 10, please note that no driver is available,
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth
The Bluetooth® version may vary, please refer to the Wi-Fi module
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between
Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11
Wi-Fi features may vary depending on the operating system. For Windows 11,
countries
manufacturer’s website for the latest specifications
please refer to the Wi-Fi chipset vendor’s website for details.

Specyficzne kody

EAN13

4711636504447
