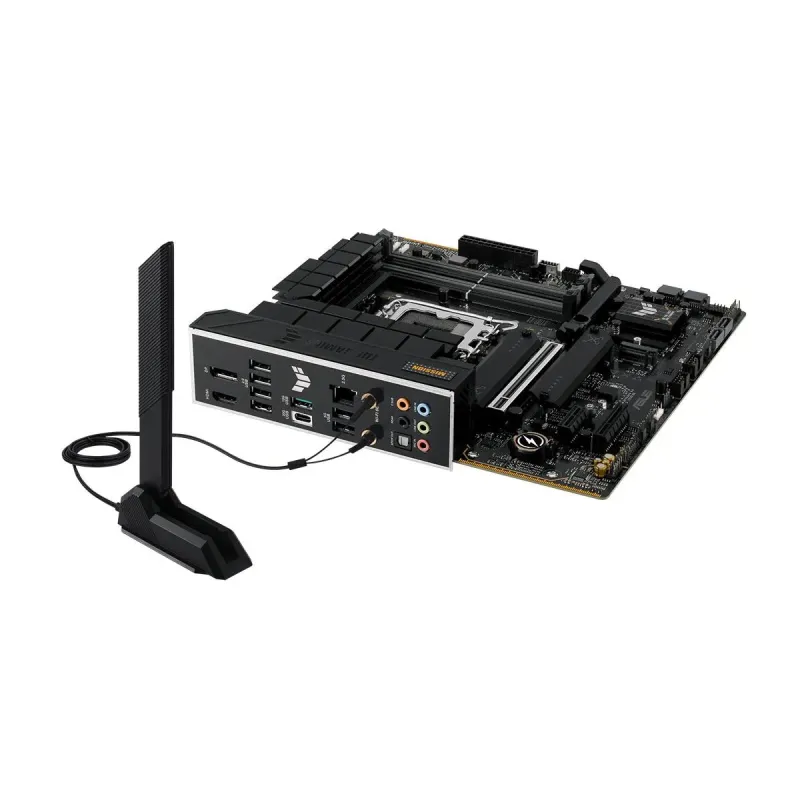

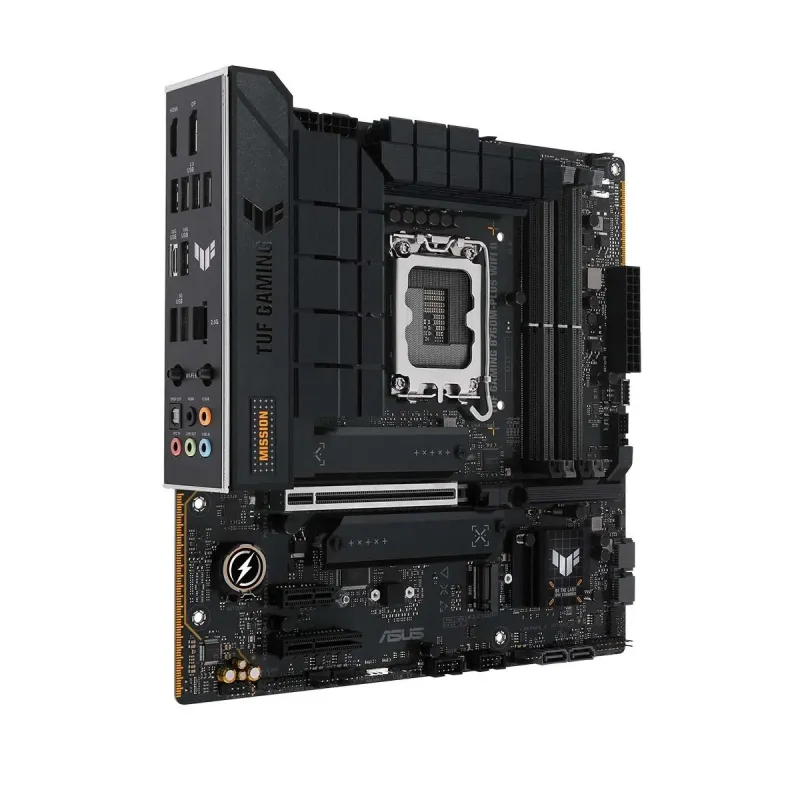

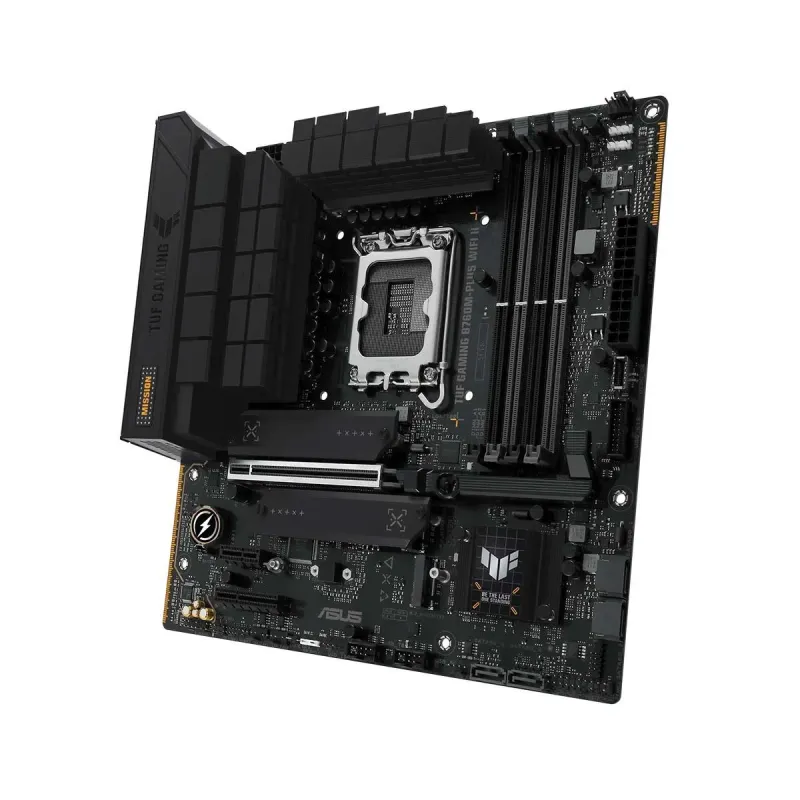

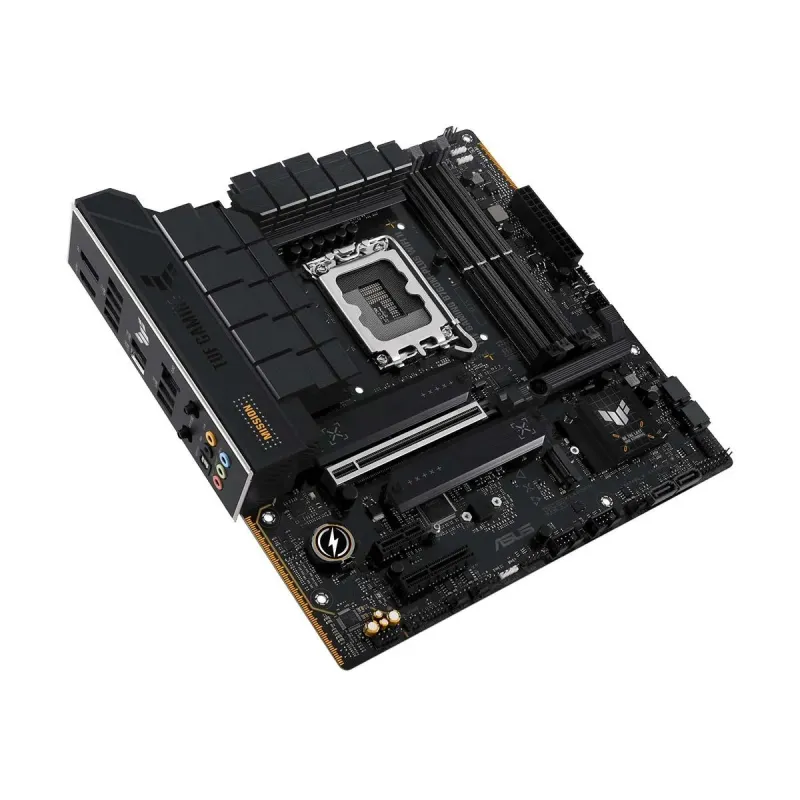

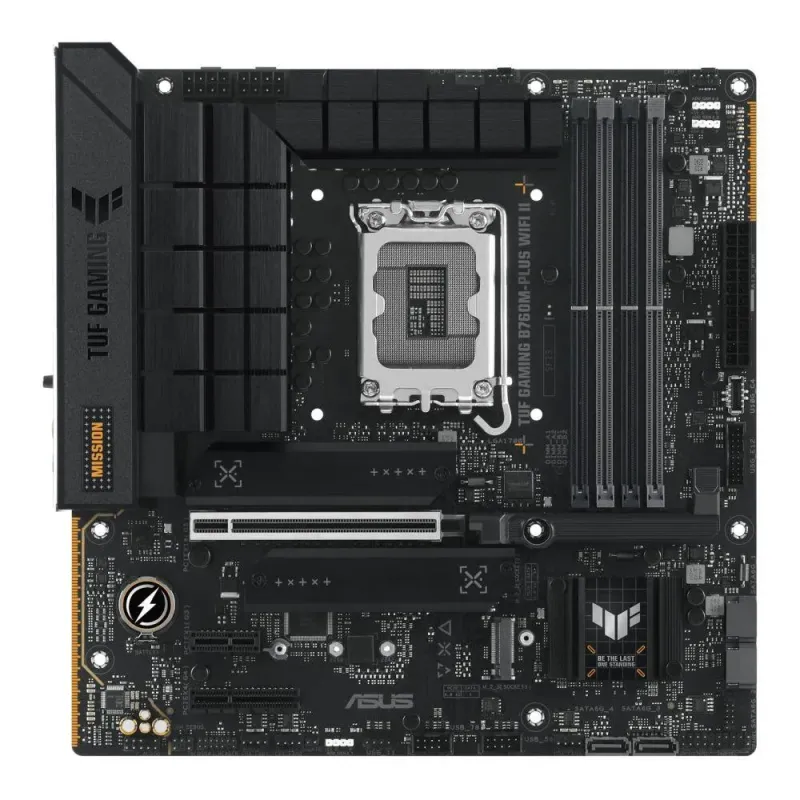

Płyta Asus TUF GAMING B760M-PLUS WIFI II

Opis

Gniazdo procesora

Socket 1700

Format płyty

Micro-ATX

Bios

128 Mb Flash ROM, UEFI AMI BIOS

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

1 x ASUS Q-Antenna
1 x M.2 rubber package
1 x TUF Certification card
1 x TUF Gaming sticker
1 x User guide
2 x SATA 6Gb/s cables
2 x Screw packages for M.2 SSD

Wymiary [S x W] (mm)

244 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.3

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax

Chipset płyty głównej

Intel® B760

Wbudowana karta graficzna

Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)

Obsługiwane typy procesorów

Intel Celeron™ (Socket 1700)
Intel Core i3 12th Generation
Intel Core i3 13th Generation
Intel Core i3 14th Generation
Intel Core i5 12th Generation
Intel Core i5 13th Generation
Intel Core i5 14th Generation
Intel Core i7 12th Generation
Intel Core i7 13th Generation
Intel Core i7 14th Generation
Intel Core i9 12th Generation
Intel Core i9 13th Generation
Intel Core i9 14th Generation
Intel Pentium™ (Socket 1700)

Standard pamięci

DDR5-4800
DDR5-5000
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5800 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7800+ (OC)

Uwagi do karty graficznej

Graphics specifications may vary between CPU types
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 4K@60Hz as specified in DisplayPort 1.4

Uwagi do procesora

Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
Technology 3.0

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

OptiMem
Supported memory types, data rate (speed), and number of DRAM modules vary
Supports Intel® Extreme Memory Profile (XMP)
depending on the CPU and memory configuration, for more information please
refer to CPU/Memory Support list under the Support tab of product

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 3x M.2

Uwagi do kontrolera SATA

- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
Intel® B760 Chipset:
Intel® CoreTM Processors (14th & 13th & 12th Gen):
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

Gniazda karty graficznej

DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

5x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

- Audio Shielding
- Dedicated audio PCB layers
- Premium audio capacitors
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback

Złącza PCI Express x16

1

Złącza PCI Express x4

1

Złącza PCI Express x1

1

Uwagi do złącz PCI

- 1 x PCIe 3.0 x1 slot
- 1 x PCIe 4.0 x4 slot
- 1 x PCIe 5.0 x16 slot
Intel® B760 Chipset:
Intel® CoreTM Processors (14th & 13th & 12th Gen):
To ensure compatibility of the device installed, please refer to

Uwagi do karty sieciowej

TUF LANGuard

Maksymalna ilość portów USB 2.0

9

Maksymalna ilość portów USB 3.x

7

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C

Gniazda USB na płycie głównej

3x USB 2.0 (5 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)

Inne porty i gniazda

3x 4-pin Chassis Fan headers
3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
Clear CMOS header
Thunderbolt header

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

Supports 2.4/5/6GHz frequency band
The Bluetooth version may vary, please refer to the Wi-Fi module
Wi-Fi 6GHz frequency band regulatory may vary between countries
manufacturer's website for the latest specifications

Specyficzne kody

EAN13

4711387461365
