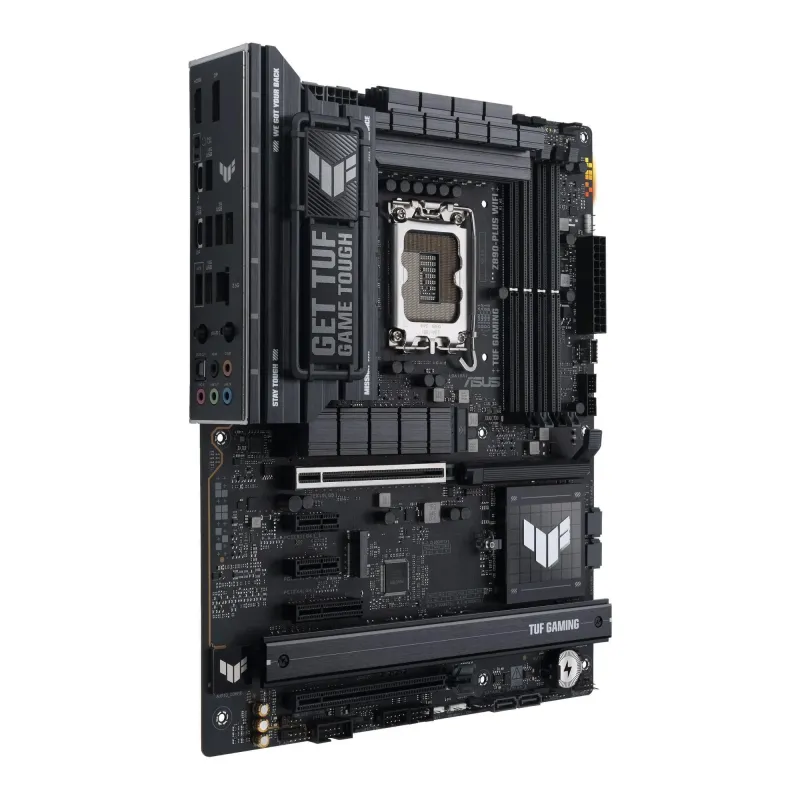

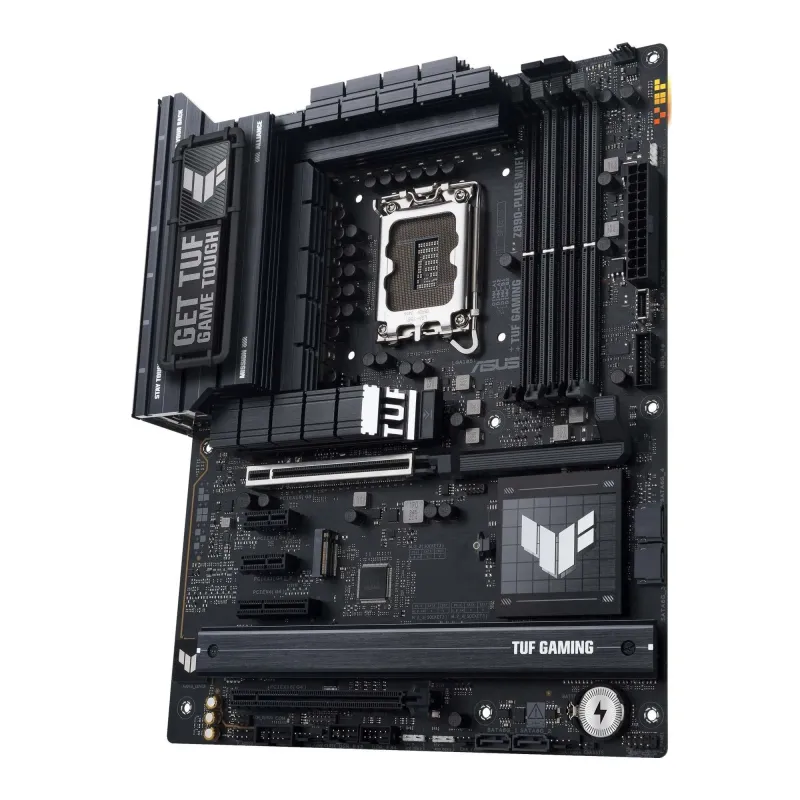

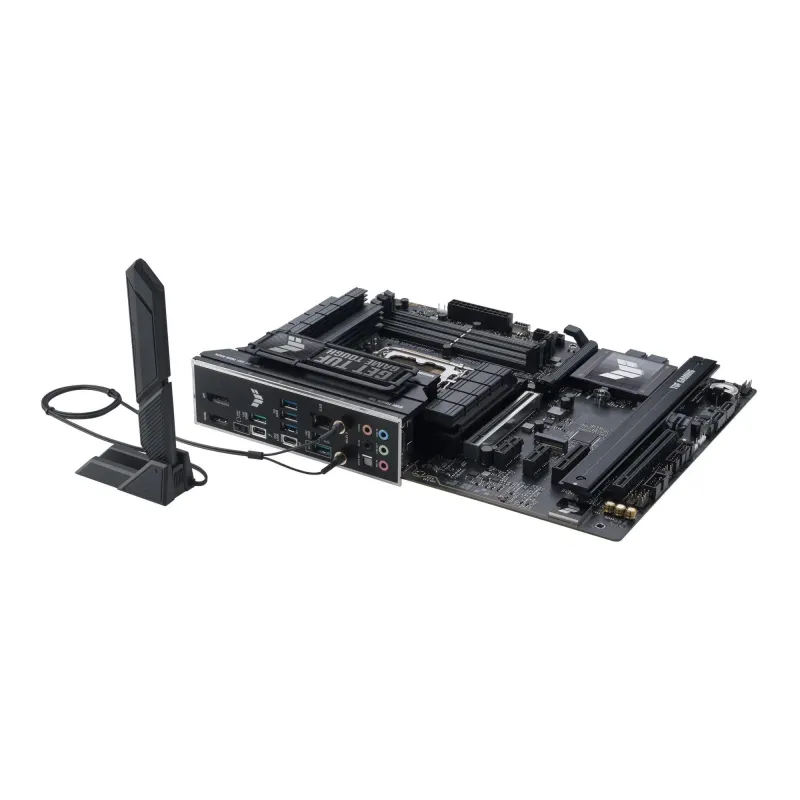

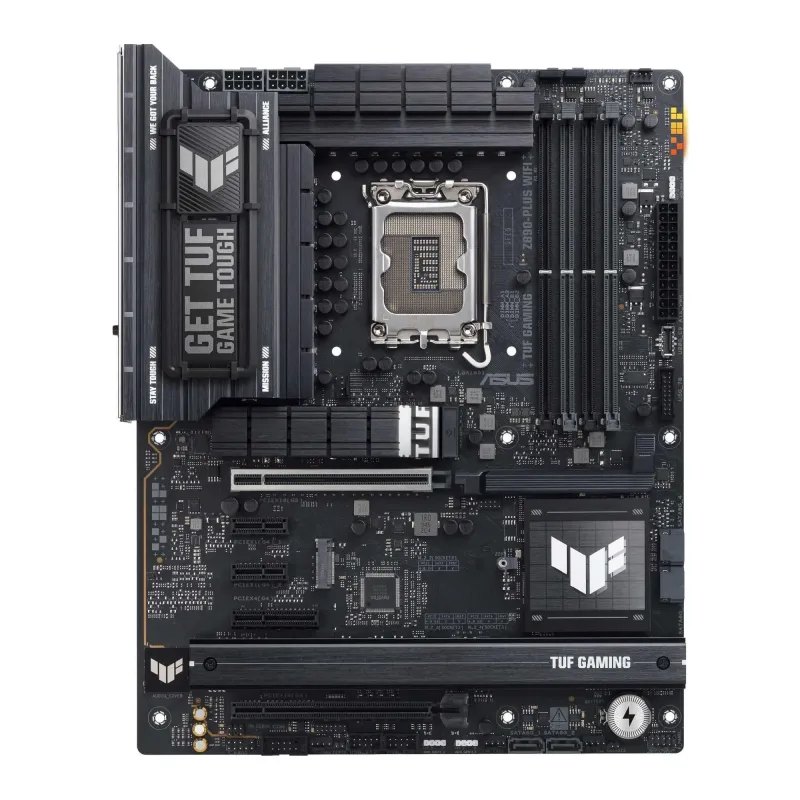

Płyta Asus TUF GAMING Z890-PLUS WIFI

Opis

Gniazdo procesora

Socket 1851

Format płyty

ATX

Bios

256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE

Zawiera baterię / akumulator

Tak

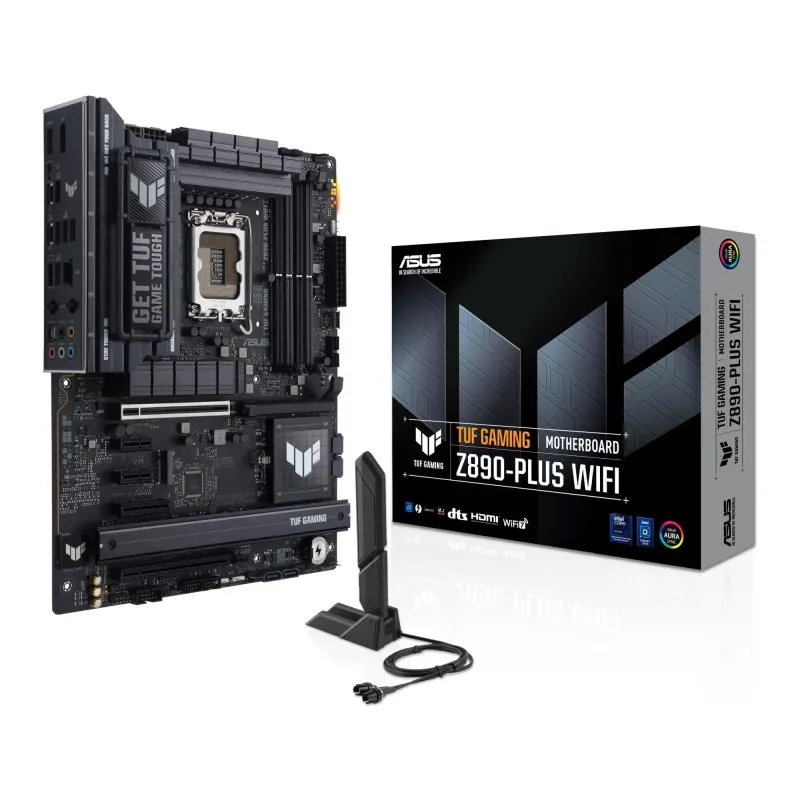

Wyposażenie dodatkowe

1 x ASUS WiFi Q-Antenna
1 x M.2 Q-Slide package
1 x Quick start guide
1 x Screw package for M.2 SSD
1 x TUF Gaming sticker
2 x M.2 Rubber Packages
2 x SATA 6Gb/s cables

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 2,5 Gigabit LAN Intel®

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

Intel® Z890

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Standard pamięci

DDR5-8600+ (OC)

Uwagi do karty graficznej

23.8Gbps, for resolution support please check DisplayPort 2.1 specs
Graphics specifications may vary between CPU types. Please refer to
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 4K@60Hz as specified in DisplayPort 1.4
Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to
VGA resolution support depends on processors' or graphic cards' resolution

Uwagi do procesora

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA

- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode
Intel Core Ultra Processors (series 2):
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1
Intel® Z890 Chipset:
SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5

Gniazda karty graficznej

2x Thunderbolt™ 4 (USB Type-C®)
DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek® ALC1220P Codec 7.1-Channel High Definition Audio

Gniazda karty dźwiękowej

5x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

7.1 Surround Sound audio
Audio Cover
Audio Shielding
Dedicated audio PCB layers
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for
Impedance sense for front and rear headphone outputs
Internal audio Amplifier to enhance the highest quality sound for headphone
Premium audio capacitors
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 32-Bit/192 kHz playback
Unique de-pop circuit
and speakers

Złącza PCI Express x16

2

Złącza PCI Express x4

1

Złącza PCI Express x1

2

Uwagi do złącz PCI

- 1 x PCIe 4.0 x4 slot
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 5.0 x16 slot
- 2 x PCIe 4.0 x1 slots
Intel Core Ultra Processors (series 2):
Intel® Z890 Chipset:
Please check the PCIe bifurcation table on the support site
To ensure compatibility of the device installed, please refer to

Uwagi do karty sieciowej

TUF LANGuard

Maksymalna ilość portów USB 2.0

4

Maksymalna ilość portów USB 3.x

10

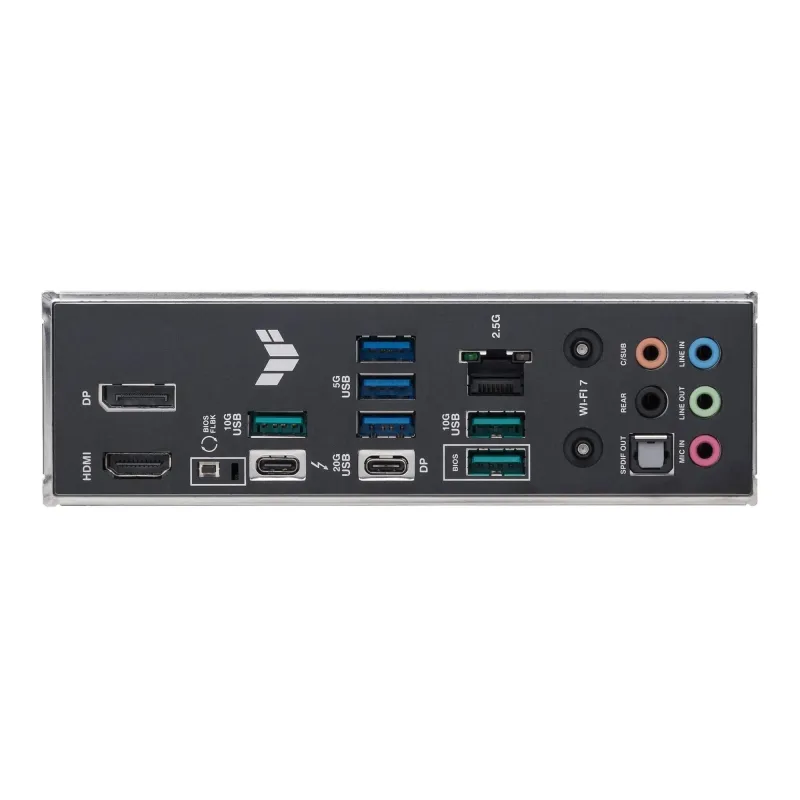

Porty USB na panelu tylnym

3x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C + 1x Thunerbolt 4 (USB Type-C)

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin System Panel header
BIOS FlashBack button
Chassis intrusion header
Clear CMOS header
Wi-Fi module with an antenna connector

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

1

Uwagi do WiFi / BT

2x2 Wi-Fi 7 (802.11be)
For Windows 10, only Wi-Fi 6 is supported
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Supports 2.4/5/6GHz frequency band
Wi-Fi features may vary depending on the operating system
functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E

Specyficzne kody

EAN13

4711387763926
