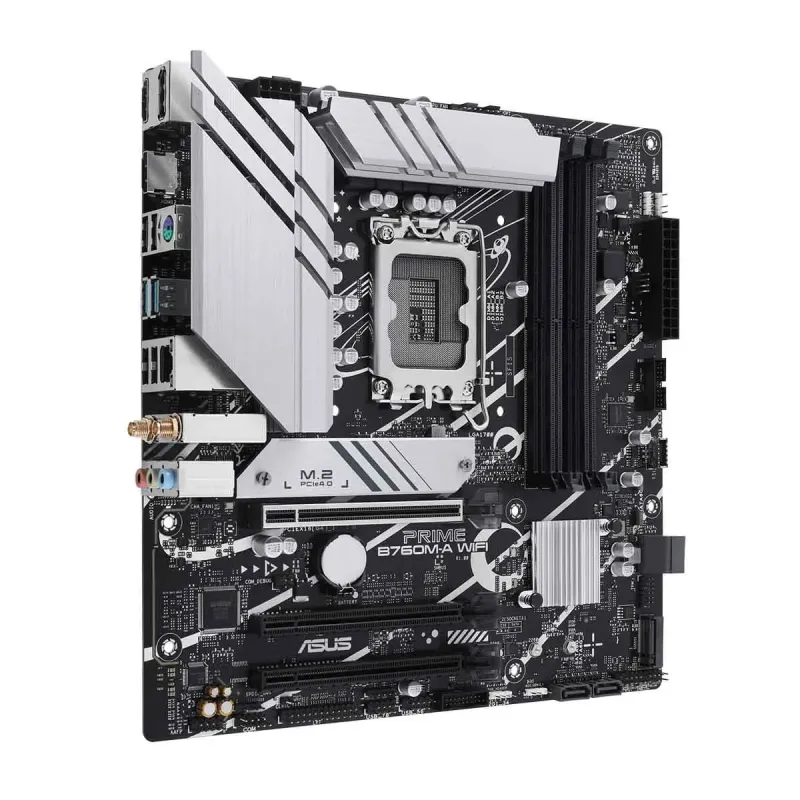

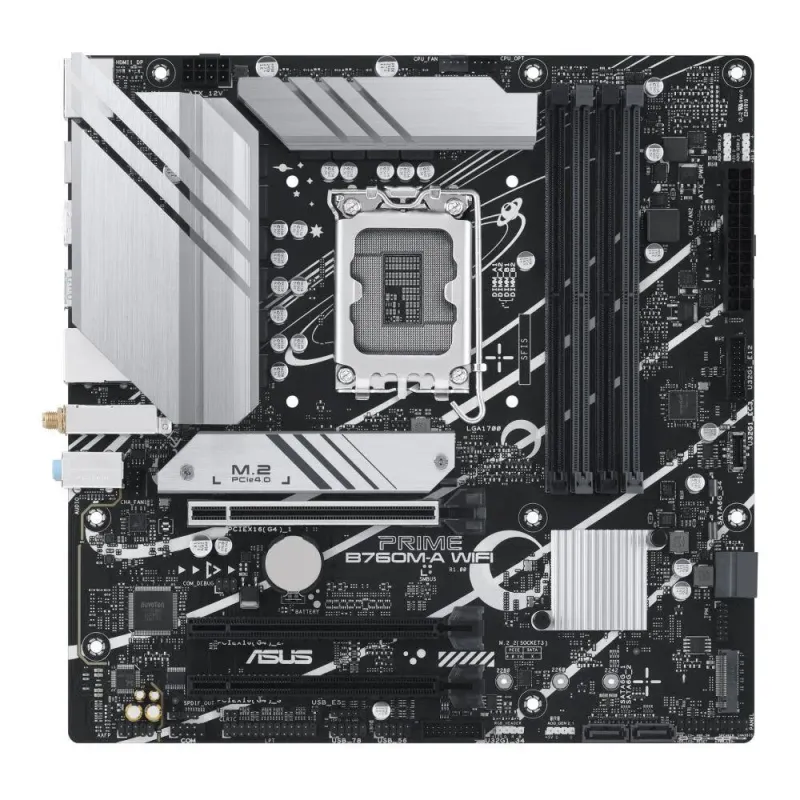

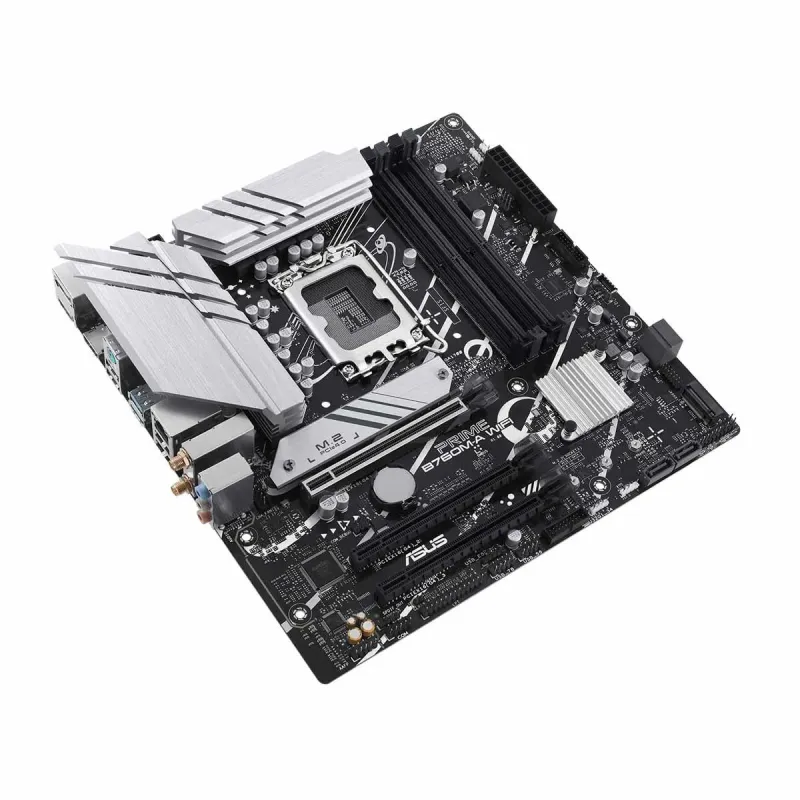

Płyta Asus PRIME B760M-A WIFI

Opis

Gniazdo procesora

Socket 1700

Format płyty

Micro-ATX

Bios

128 Mb Flash ROM, UEFI AMI BIOS

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 rubber package
1 x Screw package for M.2 SSD
1 x User guide
2 x SATA 6Gb/s cables

Wymiary [S x W] (mm)

244 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.2

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax

Chipset płyty głównej

Intel® B760

Wbudowana karta graficzna

Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)

Obsługiwane typy procesorów

Intel Celeron™ (Socket 1700)
Intel Core i3 12th Generation
Intel Core i3 13th Generation
Intel Core i3 14th Generation
Intel Core i5 12th Generation
Intel Core i5 13th Generation
Intel Core i5 14th Generation
Intel Core i7 12th Generation
Intel Core i7 13th Generation
Intel Core i7 14th Generation
Intel Core i9 12th Generation
Intel Core i9 13th Generation
Intel Core i9 14th Generation
Intel Pentium™ (Socket 1700)

Standard pamięci

DDR5-4800
DDR5-5000
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5800 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200+ (OC)

Uwagi do karty graficznej

Graphics specifications may vary between CPU types
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Uwagi do procesora

Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
Technology 3.0

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
OptiMem II
Supported memory types, data rate (speed), and number of DRAM modules
Supports Intel® Extreme Memory Profile (XMP)
please refer to CPU/Memory Support under the Support tab or visit
vary depending on the CPU and memory configuration, for more information

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 2x M.2

Uwagi do kontrolera SATA

- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
Intel® 13th & 12th Gen Processors:
Intel® B760 Chipset:
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Gniazda karty graficznej

2x HDMI
DisplayPort

Zintegrowana karta dźwiękowa

Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo S/PDIF Out
Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

A chassis with an HD audio module in the front panel is required to
Audio Shielding
Dedicated audio PCB layers
Premium audio capacitors
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
support 7.1 Surround Sound audio output

Złącza PCI Express x16

3

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 slot
- 1 x PCIe 4.0 x16 slot (supports x1 mode)
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
Intel® 13th & 12th Gen Processors:
Intel® B760 Chipset:
To ensure compatibility of the device installed, please refer to

Maksymalna ilość portów USB 2.0

9

Maksymalna ilość portów USB 3.x

7

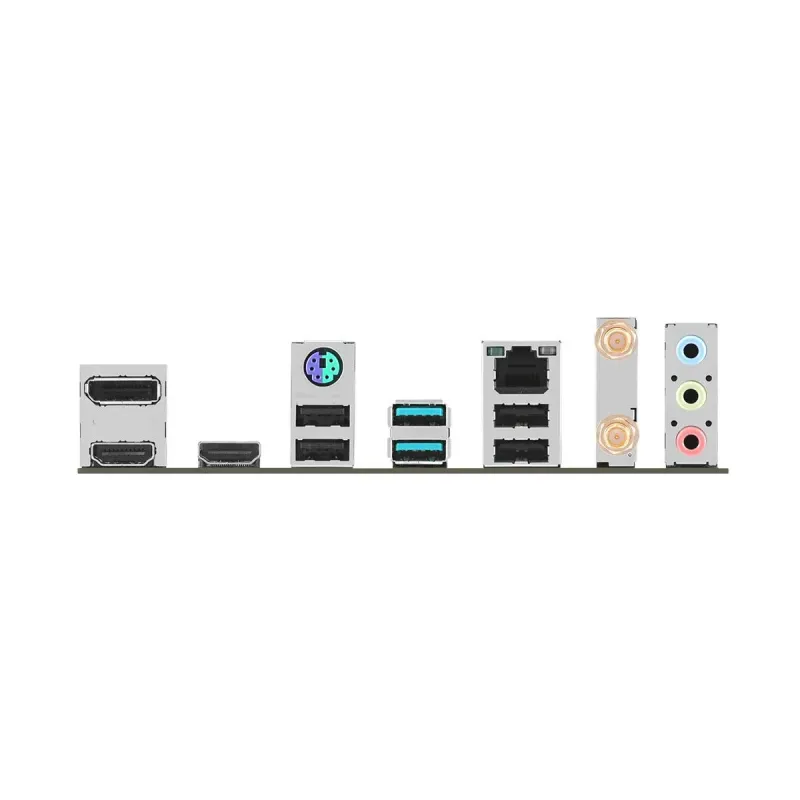

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0

Gniazda USB na płycie głównej

3x USB 2.0 (5 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.0 Type-C (1 port)

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

1x wewnętrzne gniazdo portu LPT

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU OPT Fan header
AURA RGB header
Clear CMOS header

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
The Bluetooth version may vary, please refer to the Wi-Fi module
manufacturer's website for the latest specifications

Specyficzne kody

EAN13

4711387131435
